| Categories | Alloy Steel Round Bar |
|---|---|
| Brand Name: | VANFORGE |
| Certification: | ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK |
| Place of Origin: | China |
| MOQ: | 5 metric tons |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 metric tons per month |
| Delivery Time: | 60 days |
| Packaging Details: | Seaworthy package for export |
| Material: | Alloy steel |
| Process: | Cold drawn |
| Treatment: | hardened |
| Surface: | Black, peeled |
| Shape: | Round |
| Length: | Cut to length on request |
| Price: | Negotiable |
SAE 52100 cold worked hardened alloy steel round bar
SAE 52100 Steel is a steel high carbon content, linked to chromium, used for processing when you want to achieve high hardness after hardening, between 62-66 HRC. It is a hardenable steel in oil.
Chemical Composition – C (0.98 – 1.10), Si (0.15-0.35), Mn (0.25-0.45), Cr (1.30-1.60)
Supply conditions – Supplied with maximum hardness of 250HB
APPLICATIONS
It is generally used components in the bearing manufacturing industry.
FORGING
ANSI 52100 steel should be held at a minimum temperature of 925 ºC and a maximum of 1150 ºC.
HEAT TREATMENT
Annealing: For its high carbon content of the steel 52100 must undergo spheroidizing annealing to optimize its machinability. The spheroidization is performed at around 750 ° C for times ranging between 15 and 20 hours. Cool the oven.
Standardization: The treatment should be done at the temperature of 870 – 890ºC for at least 1 hour for every 25 mm. Cool air. In special cases can use forced air.
Hardening: The austenitizing tempering must be carried out between 840 – 850 ° C, maintaining the time necessary to homogenize the temperature in cross section and cooling in oil.
Tempering: It must be done immediately after hardening when the temperature reaches about 70 ° C. The tempering is performed at temperatures between 120 – 200 ° C. The usual tempering temperature is around 150 ° C. Under these conditions there is no significant drop in hardness. In tempering at about 180 ° C the hardness can fall of 1 to 2 points HRC. The hardness variation as a function of the tempering temperature curve is shown in Arrangement below.
Product size range
Diameter: 40mm - 150mm
Length: on request

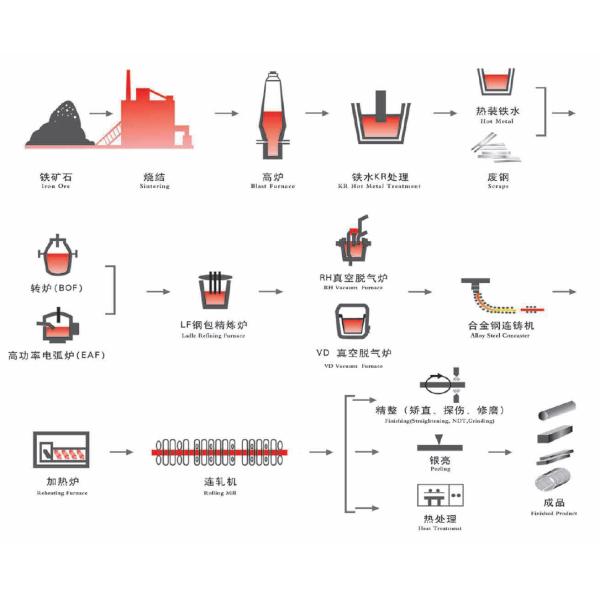

Production Process
Key clients
|
