| Categories | Tungsten Carbide Rod |
|---|---|
| Brand Name: | Weiye |
| Model Number: | customized |
| Certification: | ISO9001:2008 |
| Place of Origin: | Zhuzhou,Hunan,China(mainland) |
| MOQ: | 10 pieces |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 10000 pieces per month |
| Delivery Time: | 20-30 days |
| Packaging Details: | Meeting Requirement |
| Name: | Tungsten Carbide rods |
| Color: | Sliver Tone/gGray |
| Shape: | Cylinder |
| Surface finish: | Polished, Blank |
| Material Composition: | WC+Co |
| Advantage: | Better wear resistance |

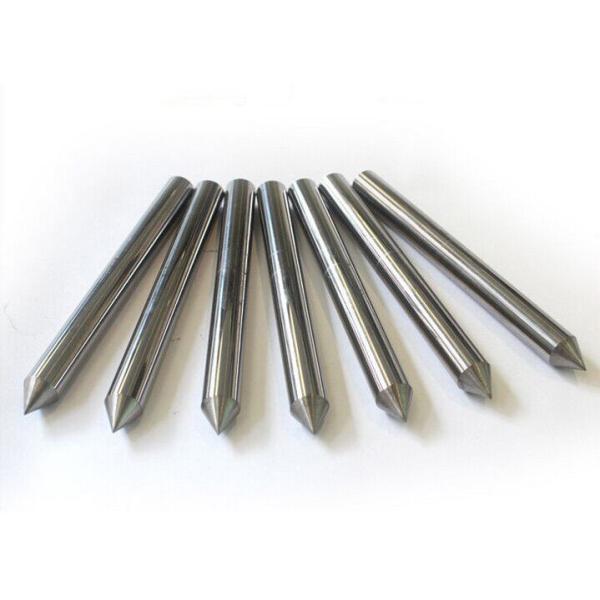

Good Commonality Tungsten Carbide Rod For Integral Drill, Milling
Cutter, Reamer
Cemented carbide is a hard material used in machining tough
materials such as carbon steel or stainless, as well as in
situations where other tools would wear away, such as high-quantity
production runs. Most of the time, carbide will leave a better
finish on the part, and allow faster machining.Carbide tools can
also withstand higher temperatures than standard high speed steel
tools
Tungsten carbide rods are mostly applied for drill bits, end mills,
and reamers with sub-micron grain grade YG10X, for non-ferrous
precision cutting and wood cutting with grade YG6X, and for
fiberglass reinforced plastics, titanium alloys, hardened steel
with ultra-fine grain grade YG8X, etc.
Applications
1. Tungsten carbide rods are mainly used for making various kinds
of solid carbides like PCB micro drill, drill bits, end mill,
reamer etc.
2. Tungsten carbide rods can be used for processing aluminum alloy,
stainless steel, heat resistant alloy steel, ductile iron, nickel
and titanium alloy, nonferrous metal etc.
3. Tungsten carbide rods can also be used for a variety of
plug-ins, silicon steel, cold rolled sheet, stainless steel punch,
thimble and punch.
Diameter:
type | dimension(mm) | |||
diameter(mm) | diameter tolerance(mm) | length(mm) | length tolerance(mm) | |
| Ф4*L | 4 | +0.3~0.4 | 10~300 | 0~+3 |
| Ф4.5*L | 4.5 | +0.3~0.4 | 10~300 | 0~+3 |
| Ф5*L | 5 | +0.3~0.4 | 10~300 | 0~+3 |
| Ф5.5*L | 5.5 | +0.3~0.4 | 10~300 | 0~+3 |
| Ф6*L | 6 | +0.3~0.4 | 10~300 | 0~+3 |
| Ф6.5*L | 6.5 | +0.3~0.4 | 10~300 | 0~+3 |
| Ф7*L | 7 | +0.3~0.4 | 10~300 | 0~+3 |
| Ф7.5*L | 7.5 | +0.3~0.4 | 10~300 | 0~+3 |
| Ф8*L | 8 | +0.3~0.4 | 10~300 | 0~+3 |
| Ф8.5L | 8.5 | +0.3~0.4 | 10~300 | 0~+3 |
| Ф9*L | 9 | +0.3~0.4 | 10~300 | 0~+3 |
| Ф9.5*L | 9.5 | +0.3~0.4 | 10~300 | 0~+3 |
| Ф10*L | 10 | +0.3~0.4 | 10~300 | 0~+3 |
| Ф10.5*L | 10.5 | +0.3~0.4 | 10~300 | 0~+3 |
| Ф11*L | 11 | +0.4~0.6 | 10~300 | 0~+3 |
| Ф11.5*L | 11.5 | +0.4~0.6 | 10~300 | 0~+3 |
| Ф12*L | 12 | +0.4~0.6 | 10~300 | 0~+3 |
| Ф12.5*L | 12.5 | +0.4~0.6 | 10~300 | 0~+3 |
| Ф13*L | 13 | +0.4~0.6 | 10~300 | 0~+3 |
| Ф13.5*L | 13.5 | +0.4~0.6 | 10~300 | 0~+3 |
| Ф14*L | 14 | +0.4~0.6 | 10~300 | 0~+3 |
| Ф14.5*L | 14.5 | +0.4~0.6 | 10~300 | 0~+3 |
| Ф15*L | 15 | +0.4~0.6 | 10~300 | 0~+3 |
| Ф15.5*L | 15.5 | +0.4~0.6 | 10~300 | 0~+3 |
| Ф16*L | 16 | +0.4~0.6 | 10~300 | 0~+3 |
| Ф16.5*L | 16.5 | +0.4~0.6 | 10~300 | 0~+3 |
| Ф17*L | 17 | +0.4~0.6 | 10~300 | 0~+3 |
| Ф17.5*L | 17.5 | +0.4~0.6 | 10~300 | 0~+3 |
| Ф18*L | 18 | +0.4~0.6 | 10~300 | 0~+3 |
| Ф18.5*L | 18.5 | +0.4~0.6 | 10~300 | 0~+3 |
| Ф20*L | 20 | +0.4~0.6 | 10~300 | 0~+3 |
| Ф22*L | 22 | +0.4~0.6 | 10~300 | 0~+3 |
| Ф25*L | 25 | +0.4~0.6 | 10~300 | 0~+3 |
| Ф30*L | 30 | +0.4~0.6 | 10~300 | 0~+3 |
|
