| Categories | Coldroom Parts |
|---|---|
| Brand Name: | Oasis brand |
| Model Number: | 50mm,75mm,100mm,150mm,200mm |
| Certification: | GB/T 19001-2006/ISO9001:2015 |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | negotiate |
| Payment Terms: | T/T |
| Supply Ability: | 100 set per week |
| Delivery Time: | 5-6 weeks |
| Packaging Details: | carton |
| Material: | Polyurethane insulation |
| Steel thickness: | 0.6mm,0.8mm,1.0mm,1.5mm,2.0mm |
| Panel thickness: | 50mm,75mm,100mm,150mm,200mm |
| Dimension: | Customized |
| Function: | Insulation and refrigeration |
| Density: | 42KG/M3 |
| Thermal conductivity: | 0.022-0.027 W/M. K |
| Surface Patterns: | Plain, corrugated, embossed, pressure ribs |
| Combustion properties: | Polyurethane Class B1-B3 |
| Effective Coverage: | 600 MM-1000 MM |

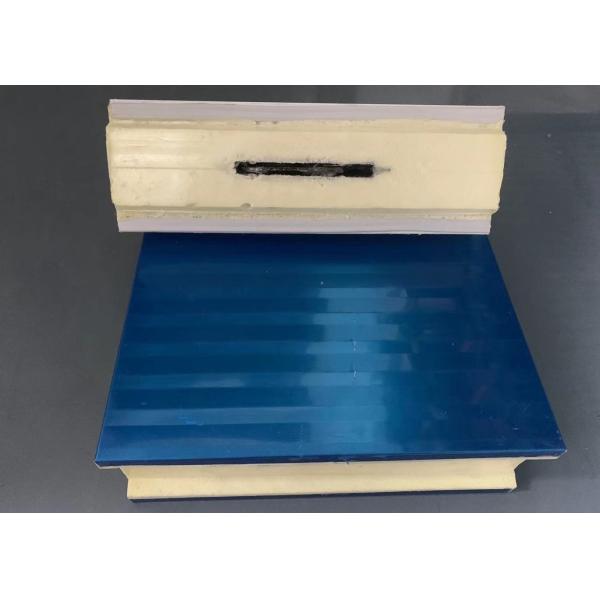

Polyurethane Cold Room Board, Coolroom Panel, Cold Storage Plate, Fabricated With Stainless Steel, Aluminum,Colorbond
Features:
1. Core material thickness: 50mm 75mm 100mm 120mm 150mm 200mm
2. Effective coverage: 60mm1000mm
3. Core material weight: Polyurethane: 40 ± 2kg/m
4. Thermal conductivity: 0.022-0.027W/m. K
5. Surface pattern: flat, corrugated, embossed, compression rib
6. Combustion performance: Polyurethane Class B1-B3
System composition:
Upper pressing steel plate, intermediate urethane material, lower pressing steel plate.

Connection method:
Each panel connected by camlock, with tongue and groove joint.

Surface pattern Materals for your referance
| Metal steel face plate (exterior +interior) | Metal steel plate thickness | PU Thickness (mm) | |||||
| 50 | 75 | 100 | 120 | 150 | 200 | ||
| Colorbond + Colorbond | 0.4-0.8 | √ | √ | √ | √ | √ | √ |
| Salinized steel + Salinized steel | 0.4-1.0 | √ | √ | √ | √ | √ | √ |
| Stainless steel +Stainless steel | 0.5-2.0 | √ | √ | √ | √ | √ | √ |
| Aluminum + Aluminum | 0.4-2.0 | √ | √ | √ | √ | √ | √ |
| Colorbond + Stainless steel | Customized | √ | √ | √ | √ | √ | √ |
| Colorbond + Salinized steel | Customized | √ | √ | √ | √ | √ | √ |
| Colorbond + Galvanized steel | Customized | √ | √ | √ | √ | √ | √ |
| Colorbond + Aluminum steel | Customized | √ | √ | √ | √ | √ | √ |
| Bare PU panel | √ | √ | √ | √ | √ | √ | |
| Customized | Customized | √ | √ | √ | √ | √ | √ |

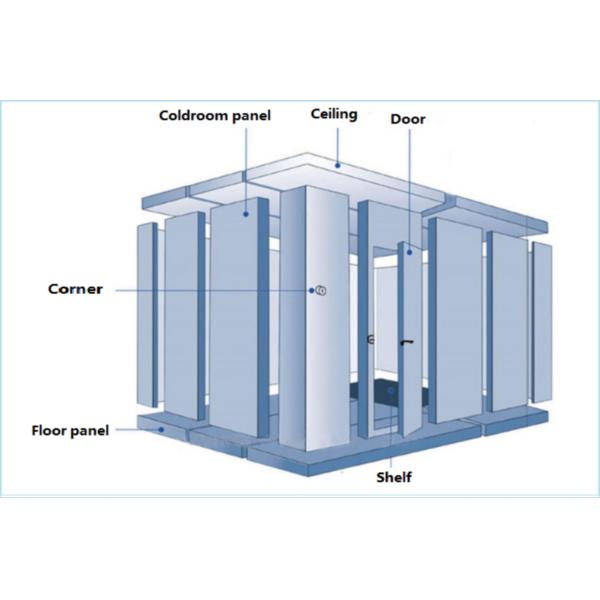

The structure of coldroom as below:
