Name: 6500K 150LPW Waterproof Led tennis court Flood Lights For Facilities Arenas
Brand: Dualrays Optoelectronics
Price: 1 USD

Home > Outdoor Lighting >

6500K 150LPW Waterproof Led tennis court Flood Lights For Facilities Arenas

Categories	LED Sports Ground Floodlights
Brand Name:	Dualrays Optoelectronics
Model Number:	DR-SP800-FGXP
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin:	Shenzhen,China
MOQ:	2PCS
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month
Delivery Time:	5-15 Bussiness Day
Packaging Details:	Netural Package/OEM and ODM Package Available
Luminaire Efficiency::	150LPW
LED Driver:	Meanwell ELG / HLG Optional
IP Grade:	IP66
Power Factory:	>0.95
CCT:	3000K-6500K
Installations::	Ground/Wall/Ceiling/Pipe

Contact Now

Add to Cart

Product Details
Company Profile

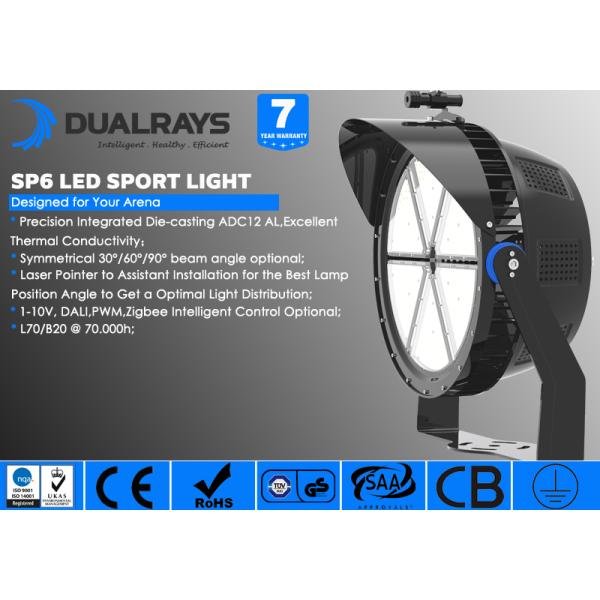

6500K 150LPW Waterproof Led tennis court Flood Lights For Facilities Arenas

LED Sports LED Flood Light For Multiple and multipurpose sports facilities and arenas

Options:

> Driver: Meanwell ELG/HLG driver;

> Controls and Dimming: 1-10V, DALI,PWM,Zigbee for Option;

> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

> Lens : Symmetrical 30°/60°/90° beam angle optional;

> Aiming Device: Laser Pointer;

> Multiple and multipurpose sports facilities and arenas

> Stadiums and Racing tracks

> Public squares

> Outdoor arenas

> Indoor sports arenas and halls

Model No.	DR-SPL300-FGXP	DR-SPL400-FGXP	DR-SPL600-FGXP	DR-SPL800-FGXP
System Watts/W	300W	400W	600W	800W
System Efficiency/LPW	150LPW
Lumen Output/lm	45.000±5%	60.000±5%	90.000±5%	120.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	30°/60°/90°
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG / HLG Optional
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Character/Power	300W	400W	600W	800W
A / mm	Ø445	Ø445	Ø537	Ø537
B / mm	321	321	373	373

360° Adjustable 400W 150lm/W Sports LED Flood Light IP65 7

360° Adjustable 400W 150lm/W Sports LED Flood Light IP65 9

360° Adjustable 400W 150lm/W Sports LED Flood Light IP65 10

360° Adjustable 400W 150lm/W Sports LED Flood Light IP65 12

360° Adjustable 400W 150lm/W Sports LED Flood Light IP65 13

360° Adjustable 400W 150lm/W Sports LED Flood Light IP65 14

360° Adjustable 400W 150lm/W Sports LED Flood Light IP65 15

360° Adjustable 400W 150lm/W Sports LED Flood Light IP65 16

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-SPL300-FGXP	12.4	610510250	13.8	1PCS/CTN
DR-SPL400-FGXP	12.9	610510250	14.7	1PCS/CTN
DR-SPL600-FGXP	25.3	890710275	27.6	1PCS/CTN
DR-SPL800-FGXP	25.9	890710275	28.8	1PCS/CTN

FAQ

Q1: What's the advantages of your SP6 flood light?

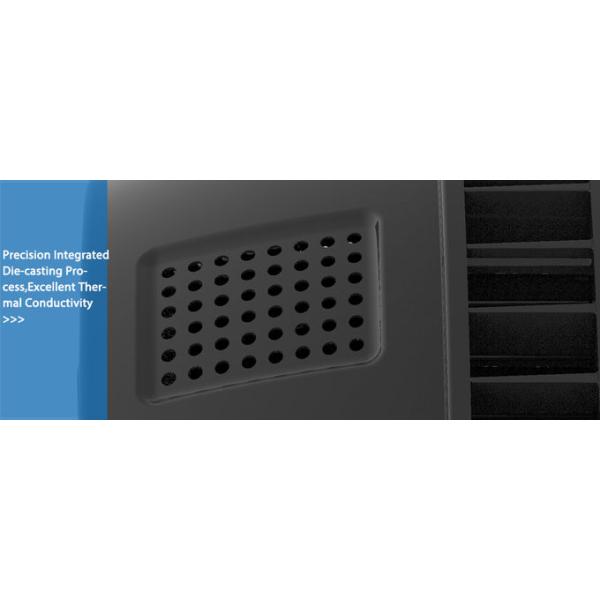

RE:● Pure aluminum integrated heat dissipation, fast heat conduction and excellent heat dissipation performance;

● Large power, small size, light weight, smaller windward area than traditional module lights, higher safety factor;

● Professional light distribution, the lens has a variety of angles such as narrow, medium and wide to choose from;

●Professional anti-spill light cover, effectively control the spilled light;

● Protection grade IP65, IK08, resistance to 16 gales, no fear of outdoor harsh environment.

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
5ft 55W Fixed Power Universal LED Linear light Module for Supermarket (DIALUX Simulation)

　　 Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial lighting Brand
5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

(Partnership)

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
