| Categories | Prepainted Aluminium Coil |
|---|---|
| Brand Name: | Dingang |
| Model Number: | Dingang - PPAL |
| Certification: | SGS,ITS,BV |
| Place of Origin: | China |
| MOQ: | 1000 Kgs / 1 Metric Ton |
| Price: | Negotiable |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 5000 Tons / Per Month |
| Delivery Time: | Within 35 Days After Order Confirmed And Down Paymetn Received |
| Packaging Details: | Seaworthy Packing With Wooden Pallet |
| Product name: | prepainted aluminium plate |
| Alloy: | AA1060,1100,3003,3004,3105,5052,8011 and etc |
| Temper: | H12,H14,H16,H24,H26,etc |
| Application: | Construction,Roofing,Decoration,Building and etc. |
| Sample: | Avaliable |
| Type: | Color Coated Aluminum Sheet/ Coil |
Al-Mg-Mn Color Coated Aluminum Coil/Sheet 0.20-3.00mm Thickness Used For Metal Roofing Material
Description of prepainted aluminium :
Color coated aluminum ( prepainted aluminum ) , which is produced
with aluminum sheet or coil and processed by coating with color or
pattern.
In common sense , here are two kinds of coating PVDF and
PE.Compared with other section steel prepainted aluminum coil is
the more popular material , because of its excellent property.
Firstly the property is very stable so the surface is erosion
resistant , warranty could up to 30 years long after special
treatment . Then , the density is the lowest among metal material
when volume is fixed
Specifications :
Alloy : AA3003,3004,3105,5052and etc
Temper : H24 ( All According Customers' Requirement )
Standard : ASTM,JIS,DIN,EN,ISO,GB And Etc
Thickness : 0.20 mm - 3.00mm
Width : 30 - 2650 mm
Thickness Paint Layer : ( PVDF ) more than 25 micron ; ( PE ) more
than 18 micron
Interior Diameter : 405 mm,505 mm,150 mm etc
Color : Ral Color Code Or As Per Clients Requirements And Sample
Coating Hardness : More Than 2H ( pencil hardness )
Impact Resistance : No Cracking And Peeling ( 50kg / cm , ASTMD -
2794 : 1993 )
Flexibility ( T-bend ) : No More Than 2T
MEK Resistance : More Than 100
Paint Performance of prepainted aluminium:
| Test Item | Paint | ||||
| PVDF | PE And Others | ||||
| With Varnish | Without Varnish | ||||
| Paint Film Thickness , μ | ≥ 22 | ≥ 30 | ≥ 18 | ||
| Shine Tolerance | Shine ≥ 80 Unit , ± 10 Unit Allowed | ||||
| Shine ≥ 20-80 Unit , ± 7 Unit Allowed | |||||
| Shine < 20 Unit , ± 5 Unit Allowed | |||||
| Pencil Hardness | ≥ 1H | ||||
| Abrasion Resistance, L/μm | ≥ 5 | -- | |||
| T-bend | ≤ 2T | ≤ 3T | |||
| Impact Strength | 50KG . CM Without Depainting And Crack | ||||
| Adhesive Force ( Class ) | ≥ 1 | ||||
| Boiling Water Resistance | Unvarying | ||||
| Chemical Resistance | Acid Endurance | Unvarying | |||
| Alkali Stability | Unvarying | ||||
| Oil Resistivity | Unvarying | ||||
| Resistance To Solvent | ≥ 70 | ≥ 50 | |||
| Scrub Resistance | ≥ 10000 Times Unvarying | ||||
| Dirt Resistance | ≤ 15 % | -- | |||
| Salt Spray Resistance ( class ) | ≥ 2 class | -- | |||

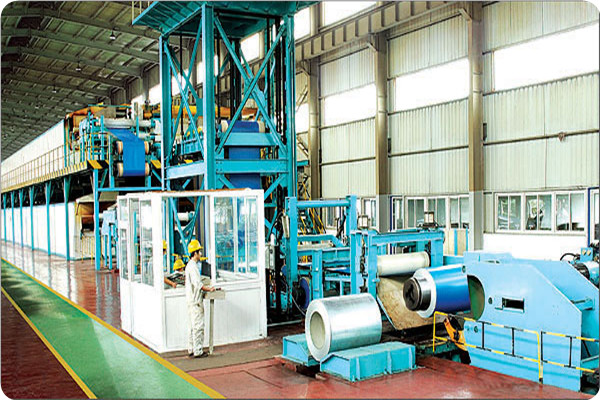

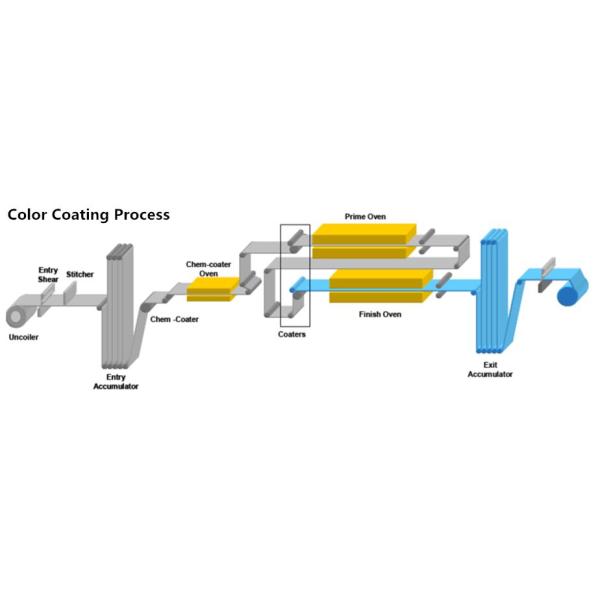

Coating Production Line:
Packing :
Export Standard Seaworthy Packing With Wooden Pallets In Horizontal Or Vertical (As Per The Requirements Of Clients)
Pre-painted Aluminum Application:
Metal Roofing Building & Metal Wall
|
