| Categories | Thin Copper Foil |
|---|---|
| Brand Name: | OEM |
| Place of Origin: | China |
| Supply Ability: | 550T Per Month |
| Packaging Details: | Exporting Wooden Case |
| MOQ: | 50kg |
| Price: | Negotiable |
| Certification: | ISO / SGS / RoHS |
| Delivery Time: | 10 - 15 Days |
| Payment Terms: | L/C, T/T |
| Application: | substrate for growing Graphene |
| Width: | 150mm |
| Material: | Red Copper |
| Thickness: | 25um |
| Grade: | Red Copper |
| Cu (Min): | 99.99% |
| Alloy Or Not: | Non-alloy |
| Shape: | Strip Coil Roll |
| Type: | Plate Coil |
| Color: | Red Coppery |
| Certificate: | ISO |
| Length: | ~90m |
| Package: | vacuum bag |
| Keyword: | Copper Foil Substrate for Growing Graphene |

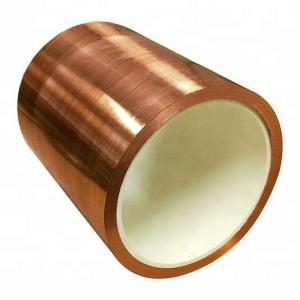

Electrolytic 25um Thickness Red Copper Sheet Metal Roll
This copper foil with 25 um thickness is the best candidate as substrate for growing Graphene. Copper strip is made of electrolytic copper and it goes through the processes of ingot, hot rolling, cold rolling, heat treatment, surface cleaning, cutting, finishing, and then packing. The material has excellent thermal and electrical conduction, flexible ductility and good corrosion resistance performance. It has been widely used in electrical, automotive, communications, hardware, decoration and other industries.
Specifications:
| Material | Tough Pitch Copper |
| Purity | > 99.99% |
| Tensile Strength | 28 kgf/mm |
| Elongation | 3-8% |
| Hardness Test | ≥ 80, HV<65 |
| Grain Size | 0.02mm |
| Electric Conductivity | 97% @20C |
| Resistivity | ≤0.017165 |
| Length | ~90m |
| Width | 150mm |
| Thickness | 25 um |
| Density | 8.94 g·cm−3 |
| Net weight | ~3.1 kg |
