Name: High Power Laser Delivery D80 Fiber Cables Core Diameters 200 Microns 800 Microns
Brand: HICORPWELL
Price: 1 USD

Home >

High Power Laser Delivery D80 Fiber Cables Core Diameters 200 Microns - 800 Microns

Categories	Fiber Optic Patch Cables
Brand Name:	HICORPWELL
Model Number:	D80 Energy Optic Fiber Cable
Certification:	IEC 60794-2-10/11
Place of Origin:	China
MOQ:	1set
Price:	negotiation
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	5000pcs Per Week
Packaging Details:	Individual package
Keyword:	D80 Energy Optic Fiber Cable
Connector:	D80
Operating wavelength:	1310, 1490,1550 nm
OD:	0.9/2.0/3.0MM
Fiber Type:	single mode / multimode
MOQ:	1 pcs
Leadtime:	3-5 working days

Contact Now

Add to Cart

Product Details
Company Profile

High Power Laser Delivery D80 Fiber Cables Core Diameters 200 Microns - 800 Microns

High-Power Laser Delivery Different Fiber-core Diameters from 200
microns to 800 microns D80 fiber cables
D80 fiber cables for high-power laser delivery are available in different fiber-core diameters from 200 microns to 800 microns (200μm, 300μm, 400μm, 600μm,
800μm). Heat dissipation plays a crucial role in the coupling of
high-power. In principle, Lfiber’s D80 fiber cables use step-index double-clad

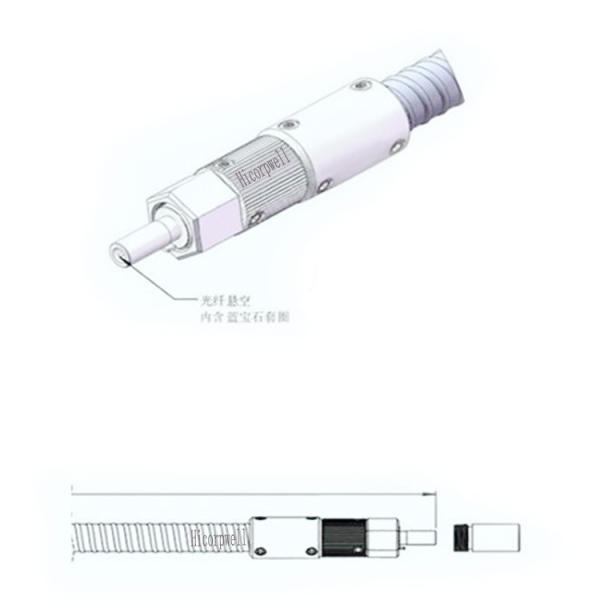

fibers and ferrules of good heat-conducting copper alloys for laser transmission. For better protection, it introduces a sapphire and air gap into
the D80 fiber connectors so that the D80 fiber cables can sustain laser power up to hundreds
of watts in a single fiberwith more than 90% transmission efficiency depending on the fiber
core diameters and laser specifications. It’s an excellent choice for fiber-coupled laser systems in
wavelength ranges from visible to near infrared (VIS-NIR, typically 400-2400 nm),
such as high-power semiconductor lasers, solid-state lasers, and fiber lasers. Areas of application include high power laser transmission, laser
welding, laser cutting, and so on.

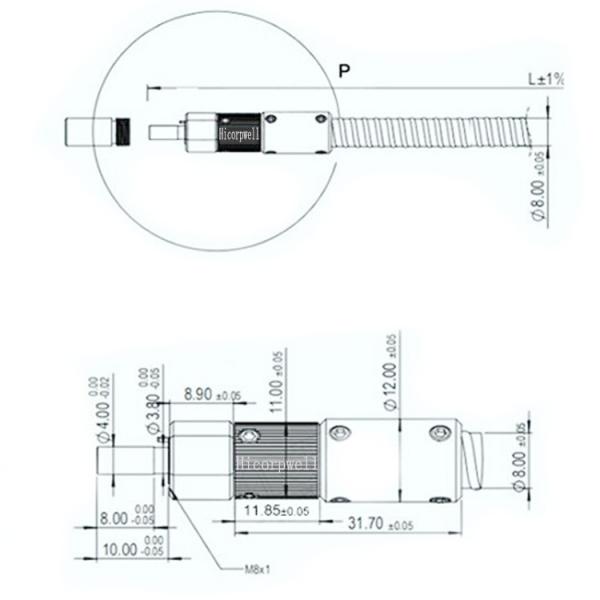

High-Power Laser Delivery Different Fiber-core Diameters from 200 microns to 800 microns D80 fiber cables
Operating wavelength(nm)	400-2400
Ferrule Diameter(mm)	4
Thread Size	M8
Inner Dore(µm)	<6
Min.Bend Radius(mm)	50
Tensile(N)	200
Crush(N/50mm)	3000
Order information	SM/MM,2m,Connector:SMA/FC/ST/SC 100μm core diameter fiber,2 m ,Connector: SMA/FC/ST/SC 200μm core diameter fiber,2 m, Connector: SMA/FC/ST/SC 400μm core diameter fiber,2 m, Connector: SMA/FC/ST/SC 600μm core diameter fiber,2 m, Connector: SMA/FC/ST/SC 800μm core diameter fiber,2 m, Connector: SMA/FC/ST/SC 1000μm core diameter fiber,2 m, Connector: SMA/FC/ST/SC Y-type 50μm core diameter fiber with 2 connectors, 2 m, Connector: SMA/FC/ST/SC Y-type 100μm core diameter fiber with 2 connectors, 2 m, Connector: SMA/FC/ST/SC Y-type 200μm core diameter fiber with 2 connectors, 2 m, Connector: SMA/FC/ST/SC Y-type 400μm core diameter fiber with 2 connectors, 2 m, Connector: SMA/FC/ST/SC Y-type 600μm core diameter fiber with 2 connectors, 2 m, Connector: SMA/FC/ST/SC
Jacket Type:	1.PVC/LSZH 2.Stainless Steel Sheathed 3. Stainless Steel Sheathed with PVC outside
