| Categories | Industrial Grade Drone |
|---|---|
| Brand Name: | NLD |
| Model Number: | NPA-610 |
| Certification: | ISO9001 CE FCC |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month. |
| Delivery Time: | 15~25 days |
| Packaging Details: | Aluminum Box |
| Type: | NPA-610 Industrial Grade Drone |
| Payload: | 0~5kg |
| Max takeoff weight: | 25kg |
| Motor wheelbase: | 1200mm |
| Wind resistance: | 6 |
| Image transmission distance: | 10~15km |

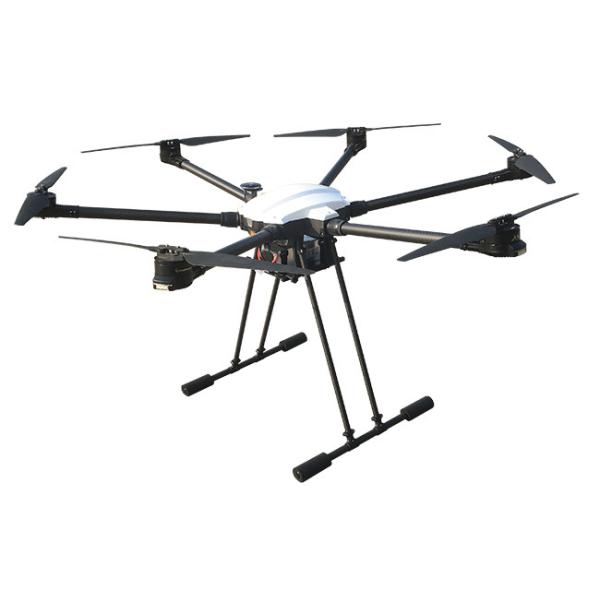

NPA-610 Industrial Grade Drone Image Transmission Distance 10~15km
| Motor wheelbase | 1200mm |
| Max takeoff weight | 25kg |
Payload | 0~5kg |
Image transmission distance | 10~15km |
| HD Camera | 1080P |
Wind resistance | 6 |
Working time | 30~50min |
| Horizontal speed | 0～15m/s |
Applications | Power inspection 3D Sand Table Modeling of Emergency Disaster Emergency communication network relay River conservancy inspection Road patrol Aerial emergency surveillance patrol |
Suspension components
N3TC-T320
| Voltage | 3S (DC12V)/ 6S | ||
| power | Dynamic 12V 0.65A | ||
Gimbal | Pitch angle action range | -90°~+135°, Jitter ±0.02° | |
| Course angle action range | 360°Infinite rotation, Jitter ±0.03° | ||
| One-key back to centering function | One-key automatic and quick return to the initial position, Lock/follow mode | ||
| Control method | Speed adaptive controllable,Network or serial port external control | ||
| optical zoom | 10x HD optical zoom lens, f=4.9±10% ~ 49±10%mm | ||
| Focus time | Real-time fast focusing function, focusing time <1S | ||
| Control mode | Support UART control and SBUS control | ||
| Features | HDMI picture-in-picture switching, pseudo-color switching, temperature measurement | ||
| Video output | Network output RTSP 1080P stream and 480P stream, local TF1080p storage | ||
Field of View (FOV) | D : WIDE 66.6º±5% TELE 7.2º±5% H : WIDE 53.2º±5% TELE 5.3º±5% V : WIDE 39.8º±5% TELE 4.2º±5% | ||
| Support mode | 1080P 60fps | ||
Laser Ranging | Infrared wavelength | 905 nm, safe for human eyes | |
| Measuring range | 10-1500 m | ||
| Accuracy/Resolution | 1m/0.1m | ||
Thermal Imaging | Resolution | 320*240 pixel | |
| Pixel spacing | 12μm | ||
| type | Uncooled focal plane microbolometer | ||
| Wavelength range | 8～14μm | ||
| Thermal sensitivity (NETD) | ≤65mk@30℃ | ||
| Contrast, brightness | Adjustable,Multiple pseudo color modes | ||
| Field of view | 6.5mm Lens, angle:34.4° x 25.°8 | ||
| Measurement function(optional) | Center point, the highest temperature and the lowest temperature display temperature function; | ||
| Overall size | 125*135*H156mm | ||
| Working environment | -10℃ to +45℃ / 20% to 80% RH | ||
| Storage environment | -20℃ to +60℃ / 20% to 95% RH | ||
| Main application | Drone aerial photography | ||
| Weight | 610±20 g | ||
|
