| Categories | Stainless Steel Sheets Plates |
|---|---|
| Brand Name: | PANGANGGROUP,TISCO,ANSTEEL,BAOSTEEL |
| Model Number: | AMS 5638, UNS S30345, AMS 5638G, XM-2 |
| Certification: | SGS, TUV, BV, ISO, MTC |
| Place of Origin: | China |
| MOQ: | 900kg |
| Price: | Negotiations |
| Payment Terms: | T/T |
| Supply Ability: | 40000KGS/Month |
| Delivery Time: | Ex-stock for delivery: 3-7 days Production lead time: 30-60 days |
| Packaging Details: | Wooden Pallet BOX;Standard Seaworthy Package;based on the customer's special requirement |
| Characteristic: | Corrosion Resistant |
| Heat treatment condition: | +N, +NT, etc. |
| Processing methods: | Peeled, Milled, etc |
| Available Shapes: | Round bar, Flat bar, etc |
| Surface: | peeled + polishing, etc. |
| Application: | Spring Washer, Rope... |
| Material Category: | Austenitic Stainless Steel |
AMS 5638 Stainless Steel Sheets Plates UNS S30345 XM-2 Hollow Round
Bar
Size Range
| Round bar / Wire rod (Diameter): | 3.5mm to 1000mm |
| Square bar / Flat bar: | 3.5mm to 1000mm |

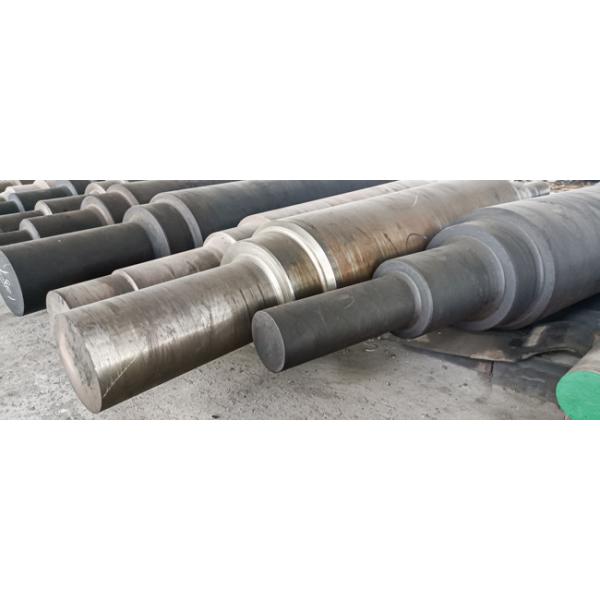

| Forging piece: | Stepped shafts with flanks / discs /tubes |
| Heavy/middle plate via hot rolled: | T5 - 100mm X W5 - 1000mm X L1500-10000mm |
Sheet steel via cold rolled: | T0.5 - 5.0mm X W5 - 1000mm X L1000 - 10000mm |
Steel strip via cold rolled: | T0.5 - 5.0mm X W3 - 150mm X L (or in coil form) |
| Length | Fixed length or random length or based on the customer's special requirement. |
Chemical Composition and standard
| Grade | AMS 5638G | UNS S30345 |
| standard | SAE AMS 5638G-2015 | ASTM A959-2019 |
| Chemical Composition (weight%) | C (％): ≤ 0.15 Cu (%): ≤ 0.50 Mn (％): ≤ 2.0 Al(%):0.60~1.0 Si (％): ≤ 1.0 P (％)≤: 0.040 S (％): 0.11~0.16 Cr (％): 17.0 ~ 19.0 Ni (％): 8.50~10.5 Mo (%): 0.4~0.6 | C (％): ≤ 0.15 Al (%): 0.6~1.0 Si (％): ≤ 1.00 |
Mechanical Properties
AMS 5638 Stainless Steel Mechanical Properties
| Tensile strength,Rm/MPa: | -- |
| Yield strength,Rp/MPa: | -- |
| Elongation/%: | -- |
| Reduction of area, ψ/%: | -- |
| Impact, KV /J: | -- |
| Annealed hardness HBS: | Up to 19.0, incl 170~255 Over 19.0, incl 104~241 |
