| Categories | Sewage Suction Truck |
|---|---|
| Brand Name: | CIVL |
| Model Number: | CIVL |
| Certification: | ISO,CCC |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 units oer week |
| Packaging Details: | nude |
| Delivery Time: | Within 35 days |
| color: | blue or other |
| brand: | sinotruck |
| fuel: | diesel |
| engine: | 290.336.371 |
| emission: | euro 2.3.4.5. |
| origin: | China |

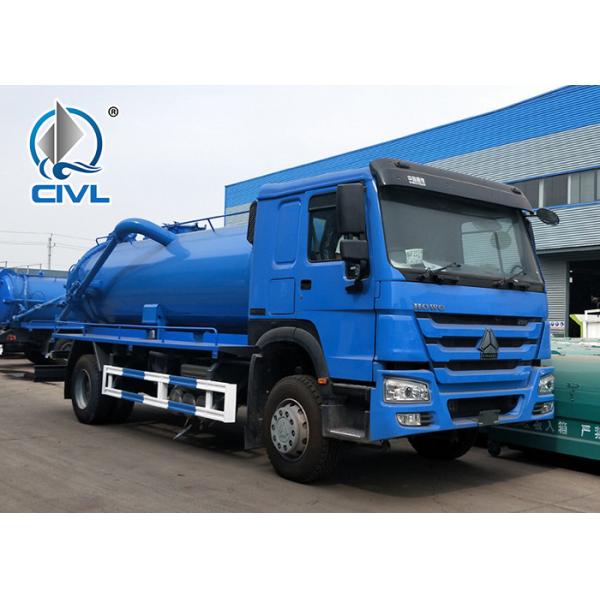

Sinotruk 4x2 8000Liters Italy Brand Vacuum Pump Yellow Color Sewage Suction Tanker Truck
Description:
Production Name: Sewage Suction Tanker Truck
The main Brand Partner: Dongfeng, SINO HOWO, HOWO, Beiben, Faw, Foton, Forland, Hyundai, Hino, Iveco, JAC, JMC, Shacman, Honyan, Genlyon
Driving Type: 4*2, 6*4, 8*4, 4*4 , 6*6 , 4wd , off-road , 10 wheel , 12 wheeler , 18 wheel
Capacity: 3000L, 4000L, 5000L, 6000L, 8000L, 10000L, 12000L, 15000L, 18000L, 20000L.....30000L
Steering Wheel: Left Hand Drive and Right Hand Drive
Equipped with high-power vacuum suction sewage pump.
Tanker with lifting function, with double hydraulic cylinder, rear cover can hydraulic open with self-flowing valve.
Equipped with power take off, transmission shaft, pipe network, sewage pipe for observing and cleanout equipment.
Specfication:
| SINOTRUK HOWO Sewage Suction Truck for sanitation enterprise 5-6CBM LHD 4X2 | |
| Chassis Model | ZZ1127G4215C1 |
| Drive Type | 4×2 |
| Engine | YC4E140, 140HP |
| Cabin | 2080 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
| Transmission | DC6J48TC(6 forwards & 1 reverses) |
| Front Axle | 3.2 Tons |
| Driving Axle | 8.2 Tons |
| Clutch | hydraulically operating with air assistance |
| Rim/ Tire | 8.25-20, 9.00R20 |
| Wheel base | 4200(mm) |
| Capacity of tank body | 5-6CBM |
| Diameter of suction tube | Φ100mm |
| Suction depth | ≥ 8 m |
| Vacuum pump | type: Vane pump Pumping speed: 318 m3/h Rated speed: 1300rpm |
| Overall dimension | 7128×2462×3175mm |
| The curb weight | 6300(Kg) |
| Gross weight | 12490 kg |
| Max. speed | 95km/h |
| Color | White, red, green, golden and so on. |
1.Important parts of Sewage suction truck: the power transmission shaft, vacuum sewage pump, pressure tank, hydraulic parts, pipe network system, vacuum gauge, depending on dung window, washing devices and other components, vehicle configuration power vacuum sewage pumps and high-quality hydraulic system, tank seal etc.
2.The tank can be opened after the double top dump. Dirt tank cover can be dumped directly, with a high vacuum, large tonnage, high efficiency, wider usage.
3.Suction sewage truck consists of: water separator, moisture separator, special vacuum suction sewage pumps, volumetric gauge, pipe network system, suction catheter material, gravity valve, vacuum tank, automatic anti-overflow valves, hydraulic kit.

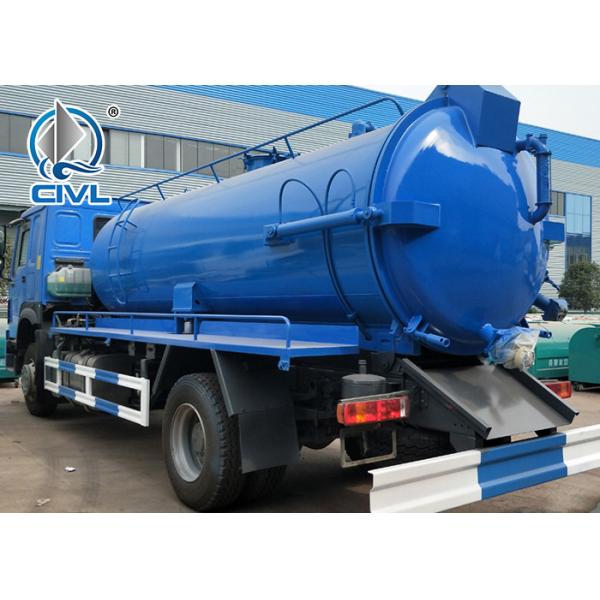

Detailed Photo:
