| Categories | Tablet Press Machine |
|---|---|
| Brand Name: | Lanphan |
| Model Number: | VH |
| Certification: | contact us |
| Place of Origin: | China,Henan |
| MOQ: | 1 Unit |
| Price: | $350-4500/1 unit |
| Payment Terms: | T/T, MoneyGram,Paypal... |
| Supply Ability: | 800 pcs per month |
| Delivery Time: | 3-5 work days |
| Packaging Details: | wooden carton package |
| Product name: | Powder Mixer |
| Model: | VH-2,VH-5,VH-8,VH-10,VH-14,VH-20... |
| Type: | single arm/double arm |
| Rotation speed/rpm: | 15-24 |
| Power (KW): | 0.04-1.1 |
| Weight: | 20-250kg |
| Application: | food, cosmetics, pharmaceutical, chemical, detergents, fertilizers and plastics... |

The cylindrical structure is the distinguishing feature and the
mixing ability is well-proportioned and efficient with no blind
spots in the cylinders and no accumulation of materials.
This machine is straightforward and it is easy to operate on a
surface that is easy to clean in a highly finished stainless steel.

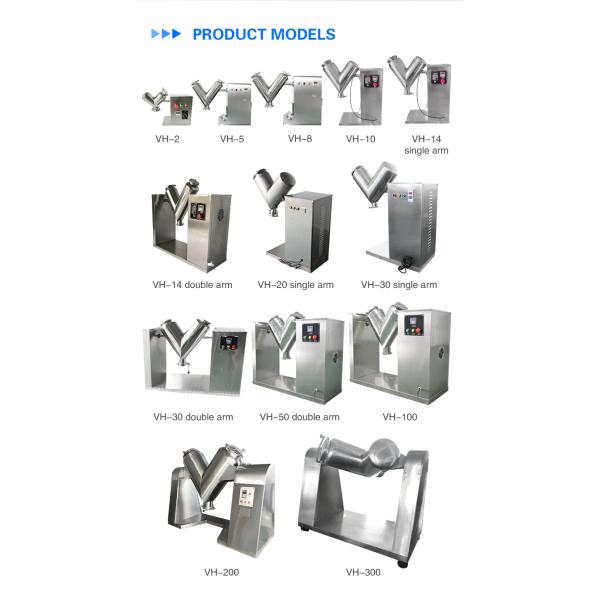

| Model | Type | Barrel volume /L | Working volume/L | Best loading/kg | Power (KW) | Rotation speed/rpm | Packing Dimension | Packing Weight | ||
| VH-2 | single arm | 2 | 0.8 | 0.6 | 0.04 | 24 | 420*330*390(mm) | 16.54*12.99*15.35(inch) | 20(kg) | 44.09(lbs) |
| VH-5 | single arm | 5 | 2 | 1.4 | 0.55 | 24 | 560*460*650(mm) | 22.05*18.11*25.59(inch) | 57(kg) | 125.66(lbs) |
| VH-8 | single arm | 8 | 3.2 | 2.2 | 0.55 | 24 | 580*560*650(mm) | 22.83*22.05*25.59(inch) | 60(kg) | 132.28(lbs) |
| VH-10 | single arm | 10 | 4 | 2.8 | 0.55 | 24 | 970*410*880(mm) | 38.19*16.14*34.65(inch) | 62(kg) | 136.69(lbs) |
| VH-14 | single arm | 14 | 5.6 | 4.2 | 0.55 | 20 | 1050*460*960(mm) | 41.34*18.11*37.80(inch) | 75(kg) | 165.35(lbs) |
| VH-14S | double arm | 14 | 5.6 | 4.2 | 0.55 | 20 | 1100*460*1000(mm) | 43.31*18.11*39.37(inch) | 100(kg) | 220.46(lbs) |
| VH-20 | single arm | 20 | 8 | 5.6 | 0.75 | 20 | 660*640*830(mm) | 25.98*25.20*32.68(inch) | 80(kg) | 176.37(lbs) |
| VH-20S | double arm | 20 | 8 | 5.6 | 0.55 | 20 | 1250*450*1100(mm) | 49.21*17.72*43.31(inch) | 130(kg) | 286.60(lbs) |
| VH-30 | single arm | 30 | 12 | 8 | 0.75 | 20 | 1700*460*1200(mm) | 66.93*18.11*47.24(inch) | 96(kg) | 211.64(lbs) |
| VH-30S | double arm | 30 | 12 | 8 | 0.75 | 20 | 1410*460*1220(mm) | 55.51*18.11*48.03(inch) | 150(kg) | 330.69(lbs) |
| VH-50S | double arm | 50 | 20 | 14 | 0.75 | 20 | 1500*550*1350(mm) | 59.06*21.65*53.15(inch) | 175(kg) | 385.81(lbs) |
| VH-100S | double arm | 100 | 40 | 28 | 1.1 | 15 | 1730*750*1660(mm) | 68.11*29.53*65.35(inch) | 250(kg) | 551.16(lbs) |
Place the machine on a flat and sturdy surface so it will run
smoohtly and effciently.
Before use, check the gear reducer to ensure there has enough oil.
Run an empty load. Check carefully to make sure the machine is
under good condition.
The materials should not exceed 40% of the cylinder's limit.
It is necessary to clean the hopper completely when changing
materials or when finishing a run.

|
