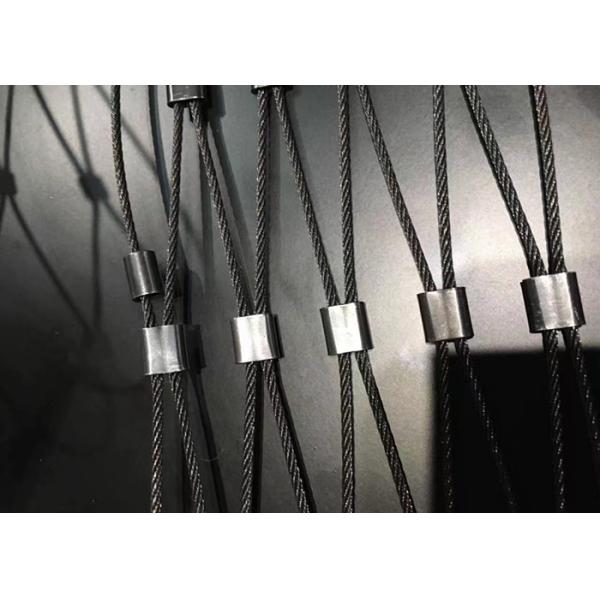

Flexible Ferruled Wire Rope Mesh , 316 Grade Stainless Steel Cable Mesh

1. Material of Flexible Ferrule Stainless Steel Wire Rope Mesh : Stainless steel 304,304L,316,306L etc.
2. Ferrules Material of Exhibition Flexible Ferrule Stainless Steel Wire Rope Mesh : Tinned-copper,Nickel-plated copper, Stainless steel etc.
3. Cable construction and Diameter of Exhibition Flexible Ferrule Stainless Steel Wire Rope Mesh : 7x7 (Dia.: 1.2 - 2.5mm), 7x19 (Dia.: 3.0 - 4.0mm)

Stainless steel ferruled wire rope mesh:

1. Material is high quality stainless steel rope and stainless steel clips.

2. Material: high quality 304,30L,316,316L.

3. It uses in home decoration, garden, and construction line.

4. Use life more than 30 years.

5. Never rust, fatigue resistance, impact resistance, high break force, the overall structure strong with long life, wide looking, new style

The wire rope mesh is manufactured in the standard diameters 1.0 mm, 1.5 mm, 1.6mm, 2.0 mm, 3.0 mm and 3.2mm. Mesh width of 25 to 200 mm (or bigger) are possible depending on cable diameter.
Rope Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316.

Mesh connections (ferrules) are available in highly aesthetic stainless steel for premium applications or where resistance to corrosion is a driving consideration.

Finished diamond mesh style when it is stretched at 60 degree angle ;
