| Categories | Hand Pallet Truck |
|---|---|
| Brand Name: | REACH |
| Model Number: | BFH |
| Certification: | CE, TUV |
| Place of Origin: | Zhejiang, China |
| MOQ: | 6 sets |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 40000 sets per month |
| Delivery Time: | 25 - 30 days |
| Packaging Details: | 6sets/pallet, 144 / 180sets for a 20ft container |
| Capacity: | 2000kg |
| Lowered fork height: | 140mm |
| Lifting height: | 255mm |
| Fork size: | 45/160/1150(1220)mm |
| Width overall forks: | 520/550/685mm |
| Ground clearance, centre of wheelbase: | 95mm |
| Service weight: | 70-80kg |
Quick Details

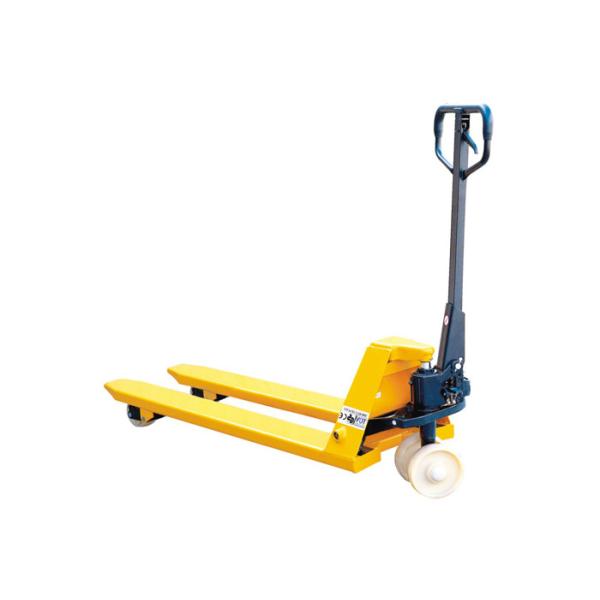

Model: High-profile hand pallet truck BFH
Capacity: 2000kg
Lowered fork height: 140mm
Total lift height: 255mm
Fork dimension: 45/160/1150(1220)mm
Width overall forks: 520/550/685mm
Ground clearance, centre of wheelbase: 95mm
Turning radius: 1266/1336mm
Service weight: 70-80kg
Advantages:
| SPECIFICATIONS OF HIGH-PROFILE HAND PALLET TRUCK | ||
| Model | BFH | |
| Capacity | kg | 2000 |
| Lowered fork height | mm | 140 |
| Steering wheel | mm | 180 |
| Fork wheel single | mm | 126*68 |
| Fork wheel tandem | mm | ~ |
| Max. lifting height | mm | 255 |
| Total height | mm | 1279 |
| Overall length | mm | 1533/1603 |
| Fork dimensions | mm | 45/160/1150(1220) |
| Width overall forks | mm | 520/550/685 |
| Ground clearance, centre of wheelbase | mm | 95 |
| Aisle width for pallets 1000*1200 crossways | mm | 1733/1803 |
| Aisle width for pallets 800*1200 lengthways | mm | 1783/1803 |
| Turning radius | mm | 1266/1336 |
| Service weight | kg | 70-80 |

|
