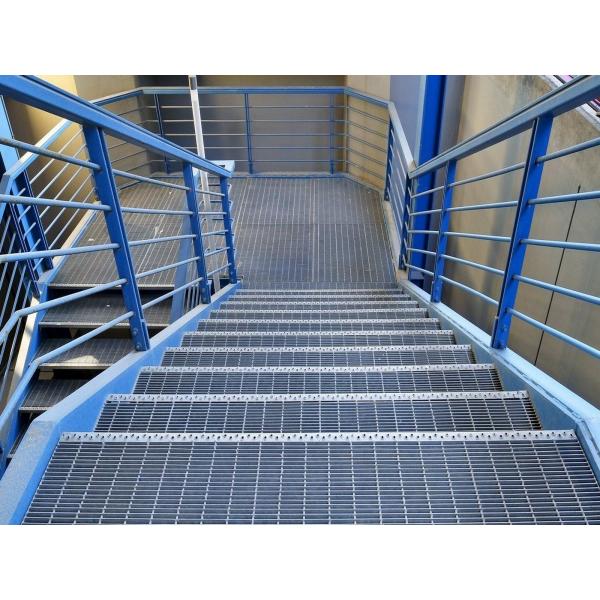

ASTM Q235 SS304 Metal Stair Treads , 25 X 3 Stainless Steel Stair Tread

ASTM Q235 SS304 25x3 Stainless Steel Grating Steel Stair Treads

Description

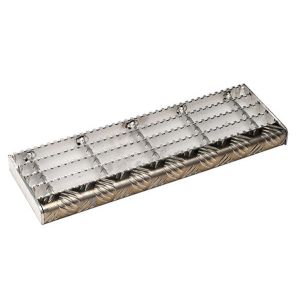

Stair tread is made of steel grating& widely used for different types ofsteel ladders,feature easy installation,strong structure&aeatheic appearance&good water permeability.We can fabricate according customer'size.
Bearing Bar
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc

Bearing Bar Pitch
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.

Grating Style

Plain / Smooth, Serrated /teeth, I bar, serrated I bar

Application

1. Widely used in shipbuilding, harbor, oceanographic engineering, building, paper mills, cement plant, medicine, spinning and weaving.

2. Is applied in food stuff factory, transportation, municipal administration, parking lot , etc.

3. Also used by various plants such as electric power, petroleum,chemical industry.

GNEE STEEL ,Has dedicated in producing and exporting all types of steel gratings for more than 19 years,A Professional Steel Grating & Safety Grating Manufacturer for Projects Engineering.

Factory

Advanced Equipment

We have more than 30 production lines of welded steel gratings and press lock gratings. Advanced equipment, skilled workers contribute to low production loss, high production efficiency and low products costs.

Supervise Strict Testing

All steel gratings are supervised by strict QUALITY CONTROL System both in International standard and enterprise test flow. All products our customers received are qualified and best in performance and package.

Steel Gratings Types We Supply

GNEE Steel Grating Application

Steel grating are designed and manufactured for various industrial and civil constructions in city road, gardens, yard, airport, railway and industrial engineering.

• Hot dip galvanized steel grating is the best choice for steel platforms in airports. Grating with 30 × 3 mm thick load bearing bars with a pitch of 30 mm and traverse bars at 50 mm or 100 mm is the suitable one.
• Steel grating, with robust design and spanning abilities, is very strong and safe for the support of floors and elevated walkway. It can be used for ceiling, interior decoration, platform aisle, ventilation windows, (Wells), advertising plaque and other construction.
• Widely used in the petrochemical industry, power plants, waterworks, sewage treatment plants, municipal works, sanitation projects in areas such as platforms, corridors, bridge, ditch cover, covers, ladders, fences, rails, and so on.
