Name: Black Color Outdoor Fiber Optic Cable Loose Tube Stranding Figure 2 288 Core
Brand: H-Lin
Price: 1 USD

Home > Electrical Wires >

Black Color Outdoor Fiber Optic Cable Loose Tube Stranding Figure 2 - 288 Core

Categories	Outdoor Fiber Optic Cable
Brand Name:	H-Lin
Model Number:	HLIN-GYTC8S
Certification:	CE,Rohs
Place of Origin:	China
MOQ:	1km
Price:	negotiable
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	50000 Meter/Meters per Day
Delivery Time:	10days after get payment
Packaging Details:	1km/wooden drum,2km or 3km/wooden drum ,as client's request
Fiber count:	2-288
Fiber type:	Singlemode/mutimode
oose tube material:	PBT with jerry
Messenger material:	Steel wire
Out sheath:	PE,PU,LSZH,PVC
Operating Temperature:	-40°c ~ +60°c

Contact Now

Add to Cart

Product Details
Company Profile

Black Color Outdoor Fiber Optic Cable Loose Tube Stranding Figure 2 - 288 Core

Figure 8 Self-support cable GYTC8S

Product Description

GYTC8S is a typical self supporting outdoor fiber optic cable with features of moisture resistance and crush resistance suitable for aerial application.

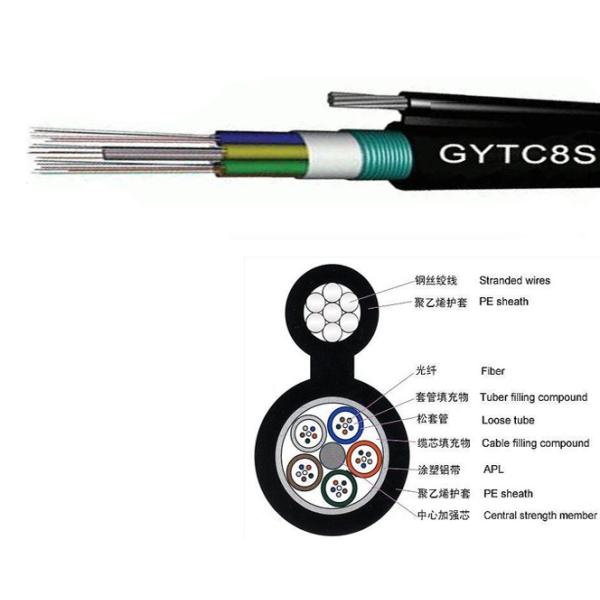

The mental strength member is made up of stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features. The steel-wire strength member as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. The impact structure ensures excellent mechanical and environmental performance.
Both single mode type and multimode types are available. Various lengths and fiber number can be customized according to customers’ requirements.

Characteristics

Water proof layer between steel tape and cable core “8” Figure cross section
Steel messenger wire
Double coated PE corrugated steel tape under PE sheath
Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
The armoring of corrugate steel tape make cable have nice properties of moisture resistance and crush resistance
With small cable diameter, light cable weight, self-supporting

Properties

Excellent water proof layer
Steel tape armored, Excellent anti-crush properties Good anti-bullet properties
Mess enger wire as the support member made excellent Anti-pull performance and easy installation

Technical Parameters

Total number of fiber cores		2-288
Outer diameter (mm)		11.5-20.0
Cable Max unit weight (kg/km)		190-380
Allowable pull force (N)	long-term	600
	short-term	1500
Allowable crush strength (N/100mm)	long-term	300
	short-term	1000
Min bending radius (mm)	static	12.5 times of cable external diameter
	dynamic	25 times of cable external diameter
Application of temperature		-40°C-60°C

Applicable fields

Long distance communication and LAN

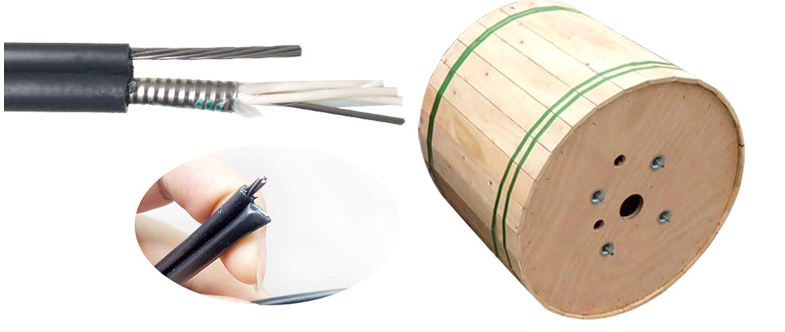

Products Show
