| Categories | Quick Connect Products |
|---|---|
| Brand Name: | carterberg |
| Model Number: | H100004 |
| Certification: | IATF16949 |
| Place of Origin: | China |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 5000~20000 pc/month |
| Delivery Time: | 7-20 work days |
| Packaging Details: | carton |
| Max. working pressure: | 15-100 MPa |
| Min. burst pressure: | 45-210 MPa |
| Min. bend radius: | 130 mm |
| Weight: | 0.65 kg/m |
| Product name: | hydraulic rubber hose |
| Reinforcement: | High Tensile Steel Wire |
| Application: | hydraulic oil or wind |
| Standard: | SAE100 R1/DIN EN853 1SN |

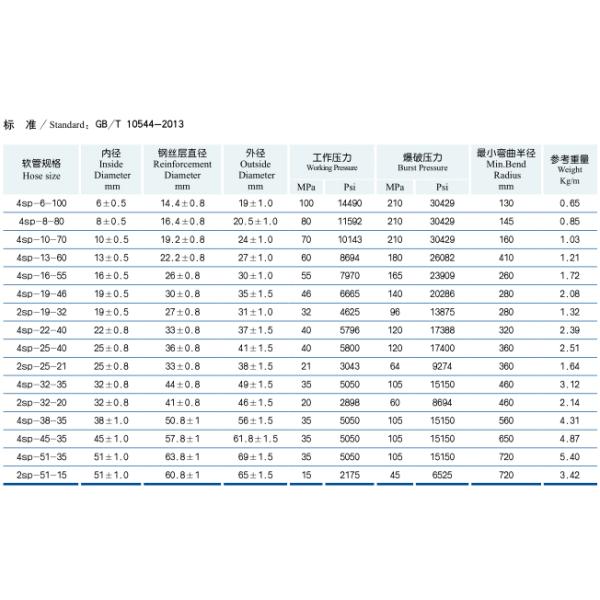

High Pressure Steel wire spiral rubber hose two and four spiral wire reinforcements High pressure Hose
CONSTRUCTION: This hose consists of an inner tube of oil synthetic rubber, two, four spiral wire reinforcements, and an oil and weather resistant synthetic rubber cover.
APPLICATIONS: Hose range suitable to carry hydraulic fluids such as glycol , mineral oils, fuels, lubricants, emulsion, hydrocarbons etc. WORKING TEMPERATURE: from -40℃ up to +120℃
Our Services:
1. Customized design, OEM is available. |
2. In-time & professional after sales service. |
3. Low MOQ, standard package, fast delivery. |
4. Special discount and protection are provided to our distributors. |
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
|
