32mm geared brushless dc motor 12v dc gear motor low rpm 3500mNm 1.6 RPM to 3600 RPM

32mm geared brushless dc motor 12v dc gear motor low rpm 3500mNm 1.6 RPM to 3600 RPM

Product Tag: 32mm Brushless Gear Motor , 32mm BLDC Gear Motor , 32mm Brushless DC Gear Motor , 32mm DC Brushless Gear Motor , 32mm Brushless Gearmotor , 32mm Brushless DC Gearmotor , 32mm Geared BLDC Motor , 32mm OEM Geared BLDC Motor , 32mm Geared Brushless DC Motor , 32mm High Torque Gear Motor , 32mm Low Speed Gear Motor , 32mm Brushless DC Gearbox Motor , 32mm Small DC Brushless Gear Motor

• Introducing our advanced Coreless brushless motor, now combined with a high-precision planetary gearbox. Panda’s slotless BLDC motors offer outstanding performance, capable of running at very low speeds without generating cogging torque. The low-inertia design further allows for higher acceleration rates.
• For demanding applications, slotless brushless motors are an excellent choice, offering a higher power-to-weight ratio and longer lifespan compared to traditional DC motors.
• When paired with high-precision gearboxes, Panda’s Brushless Gear Motors provide a dependable inline solution, delivering high torque at low speeds. Panda's Brushless DC Gear Motors are renowned for their high efficiency and superior torque output, outperforming other gear motors. They can handle varying loads with minimal backlash, making them perfect for intermittent duty operations. With a wide range of reduction ratios, voltages, and sizes available, PANDA delivers fully customized gear motor solutions tailored to your specific requirements.

Presently, Our planetary gearboxes span a wide range of sizes, ranging from 8mm to 57mm in diameter.

Key Specifications for this Ø 32mm dc brushless gear motor:

• Gearbox Outer Diameter: 32 mm
• Motor Outer Diameter: 32mm
• Rated Voltage: 12V DC to 48V DC or customized
• Gearbox Length: 26.8mm to 50.5mm
• Reduction Ratio: Wide range from 1: 3.5 to 1: 5032.84
• Rated Torque: wide range from 142mNm to3500mNm or Customized
• Rated Speed: wide range from 2.5RPM to 3654RPM or Customized

Typical Applications:

• Power Hand Tools: electric screwdrivers, electric pruning shears, dental hand tools, etc.
• Industrial Automation: Conveyor systems, automated guided vehicles (AGVs) and other machinery that requires precise movement.
• Robotics: Electric Grippers, Robotic arms, drones, autonomous vehicles, etc.
• Medical Devices: surgical instruments, prosthetics, and rehabilitation devices, Dosing and Dispensing Systems, etc., where precision and reliability are critical.
• Consumer Electronics: cameras, printers, and scanners, where compact size and low power consumption are essential.

• Aerospace : Used in actuators and control surfaces in aircraft, where performance and reliability are paramount.

• Automotive : power seats, window lifts, and other electronic controls within vehicles.

• Home Appliances: vacuum cleaners, coffee machines, and other appliances that require efficient and quiet operation.

Remark:

• Please contact us for detailed specifications and drawings of the geared motor you need.
• We offer design and production services for customized geared motors (OEM & ODM).

If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing

products at a more economical price point.

To see the product catalogue on our Brushless DC Gear Motors Φ12-42 mm , please

Check Here and download.

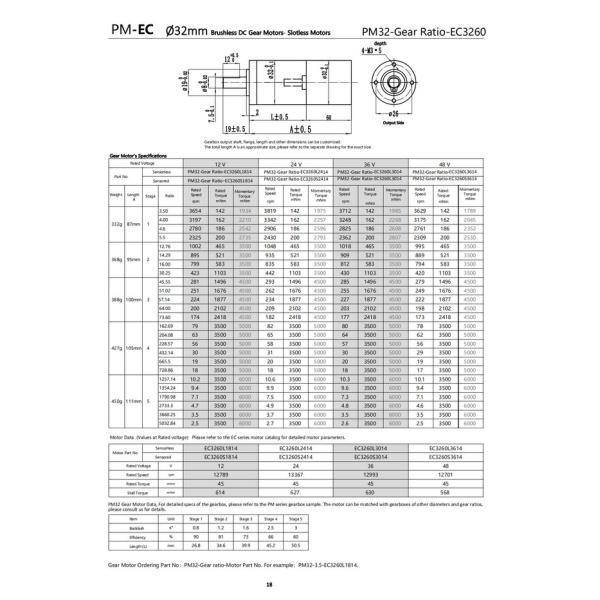

Please review the standard data and dimensions of the gear motor below. Please note that we can provide deep customization

based on your size and data requirements.

Panda Global Industries Co., Limited is a comprehensive enterprise that integrates the development, design, and manufacturing of high precision Slotless BLDC Motors, Slotted Brushless DC Motors, Brush Motors, DC Gear Motors, and Servo Motors.

Additionally, we offer comprehensive solutions encompassing Motors, Gearboxes, Encoders, Brakes, and Drivers. Our product portfolio finds wide application across various sectors including military, aerospace, medical equipment, electric tools, robotics, industrial automation, and inspection equipment. The R&D and sales teams comprise professionals with extensive experience garnered from reputable industry players.

Armed with profound expertise, they offer tailored recommendations and product selection guidance, crafting unique and highly competitive solutions for diverse industries and clients.

Geographically, our footprint spans developed regions such as North America, Europe, Japan, and South Korea, where we've earned accolades and gratitude from discerning customers.

Please feel free to contact us; we guarantee a response within 8 working hours.
