1.5Kw Hybrid Inverter 24v Hybrid Solar Inverter 348x270x95mm Max PV Voltage 150V

1.5Kw Hybrid Inverter 24v Hybrid Solar Inverter 348x270x95mm Max PV Voltage 150V

1.5Kw Hybrid Inverter 24v Hybrid Solar Inverter 348x270x95mm Max PV Voltage 150V
1.5Kw Hybrid Inverter 24v Hybrid Solar Inverter 348x270x95mm Max PV Voltage 150V
Categories Solar Hybrid Inverter
Place of Origin: Guangdong, China
Model Number: VICTOR NMS-1500-24
Brand Name: SZSSTH
Price: CN¥877.11/pieces 1-499 pieces
Input Voltage: 24V
Output Voltage: 220V 230V
Output Current: Load
Output Frequency: 50Hz/60Hz
Output Type: Single
Size: 348x270x95mm
Type: DC/AC Inverters
Inverter Efficiency: 95%
Weight: 4kg
Product name: Hybrid Solar Inverter 1.5Kw
Inverter type: Hybrid Off Grid Solar Inverter
Controller type: MPPT Solar Controller
Communication: WiFi/GPRS(Optional)
Battery type: Lead Acid \ Lithium \ Gel
Protection: Overload
Rated power: 1500VA
AC Voltage: 230VAC
Display: LCD Display
Max PV voltage: 150V
Certificate: CE, ROHS
Warranty: 1 year
Contact Now
  • Product Details
  • Company Profile

1.5Kw Hybrid Inverter 24v Hybrid Solar Inverter 348x270x95mm Max PV Voltage 150V

Products Description
Product Features
1.Pure sine wave solar inverter 2.Built-in 40A MPPT solar charger 3.PVinput voltage range20-150VDC (for 1000W),30~150VDC(for 1500W)Built-in anti-dust kit for harsh environment 4.Smart battery charge design to optimize battery life 5.meet rich customized demands 6.Solar energy is provided directly to the load first
Model
VICTOR NMS-1000-12
VICTOR NMS-1500-24
RATED POWER
1000W/1000VA
1500W/1500VA
AC Input
Voltage
230VAC
Selectable Voltage Range
170~280VAC(For Personal Computers)
90~280VAC(For Home Appliances)
Frequency Range
50Hz/60Hz(Autosensing)
AC OUTPUT
AC Voltage Regulation
230VAC±5%
Surge Power
2000VA
3000VA
Efficiency(Peak) PV to IN V
98%
Efficiency(Peak) Battery to IN V
94%
Transfer Time
10ms
BATTERY
Battery Voltage
12VDC
24VDC
Floating Charge Voltage
13.5VDC
27VDC
Overcharge Protection
16VDC
32VDC
SOLAR CHARGER&AC CHARGER
Solar Charger Type
MPPT
Maximum PV Array Power
600W
1200W
MPPT Range@Operating Voltage
20~150VDC
30-150VDC
Maximum PV Array Open Circuit
Voltage solar
150VDC
Maximum Solar Charging Current
40A
Maximum AC Charging Current
40A
Maximum Solar+AC Charging
Current
80A
PHYSICAL

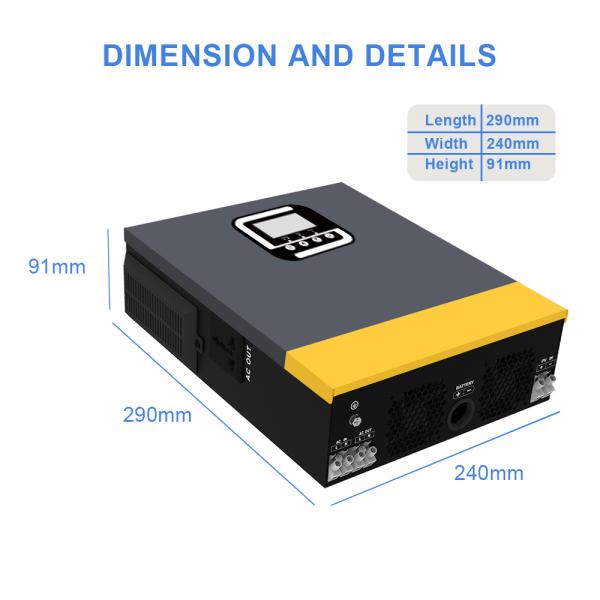

Dimension, D*W*H(mm)
290*240*91
Cartoon Dimension, D“W*H(mm)
340*295*145
Net Weight(kgs)
3.5
3.6
Gross Weight(kgs}
4.0
4.2
ENVIRONMENT
Humidity
5%to 95%Relative Humidity(Non-condensing)
Operating Temperature
-10℃-50℃
STANDARD
Compliance Safety
CE
Recommend Products
Company Profile
Customers' feedback
FAQ
1)Any inquiries will be replied within 24 hours
2)Well-trained and experienced staffs to answer all your enquires influent English.

OEM and ODM available:

1)Print logo on our products.
2)Customized Specification.
3)Customized Color Package box.
4)Any your idea on our products,we can help you to design and put it into production

Before and After-sale service:

1)All products will have been quality checked strictly in test house before packing
2)All products will be well packed before shipping
3)All our products have 2-5 years warranty
and we are sure the product will be free from maintenance within warranty period

Payment term:

T/T, Western Union, Paypal,MoneyGram, L/C are available.

Shipping and delivery:

1)We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS and so on.You can also choose your own shipping forwarder.
2)normal products need About 15-25 days,customized products need about 30-45 days.
Product Tags:

1.5Kw Hybrid Inverter 24v



24v Hybrid Solar Inverter



1.5Kw Hybrid Inverter 150V


Quality 1.5Kw Hybrid Inverter 24v Hybrid Solar Inverter 348x270x95mm Max PV Voltage 150V for sale

1.5Kw Hybrid Inverter 24v Hybrid Solar Inverter 348x270x95mm Max PV Voltage 150V

Send your message to this supplier

*From:
*To: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
*Subject:
*Message:
Characters Remaining: (0/3000)

You May Like
Inquiry Cart 0
Company Info
Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
Verified Supplier
View Contact Details
Products List
Contact Now
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
More from this Supplier

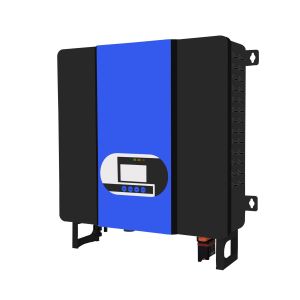

Cheap AC Voltage 230VAC 3.5KW 24V MPPT Wifi All in One Home Hybrid Inverter for Off Grid Applications wholesale Cheap 8.2kW Hybrid Solar Inverter 48V MPPT Pure Sine Wave Off Grid wholesale Cheap MPPT Solar Controller 3KW 24V to 110V 220V 230V All in One Hybrid Inverter for Lead Acid Batteries wholesale
