8PA Vacuum Heat Treatment Muffle Furnace for Industrial Laboratory

Categories Vacuum Muffle Furnace
Model Number: VBF1200-02
Range of Applications: Industrial
Type: Electric Holding Furnace
Usage: Sintering
Fuel: Electric
Atmosphere: Vacuum
Effective Dimension: 850*850*1600mm(W*H*D)
Max Vacuum Level: 8PA
Transport Package: Wooden Packaging
Specification: 850mm*850mm*1600mm(W*H*D)
Trademark: Chitherm
Origin: China
HS Code: 8514101000
Supply Ability: Customized
Customization: Available
Certification: ISO
Place Style: Horizontal
Place of Origin: China
Brand Name: Chitherm
MOQ: 1
Price: Negotiable
Packaging Details: Customized
Delivery Time: Customized
Payment Terms: Customized
  • Product Details
  • Company Profile

8PA Vacuum Heat Treatment Muffle Furnace for Industrial Laboratory

Max Vacuum Level 8PA Industrial Laboratory Furnace Vbf1200-02 High Vacuum System Oven Furnace for Industrial Applications


Typical applications:
Primarily used for vacuum heating degassing of the coupler housing and suppression of air oxidation.

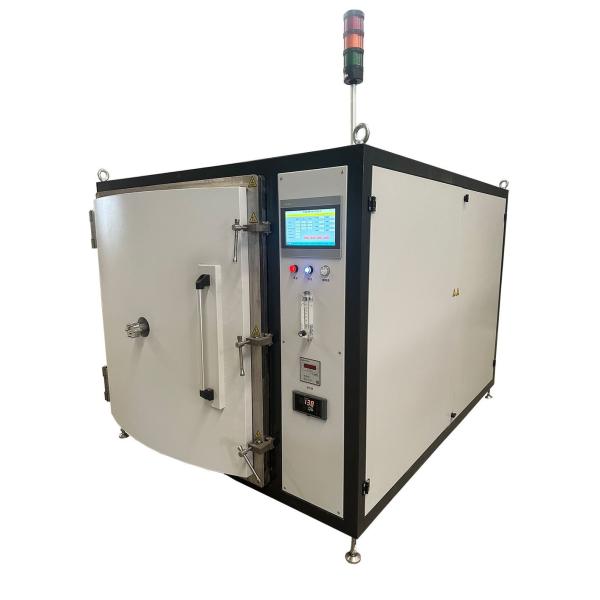

Laboratory Furnace 200º C Vbf1200-02 High Vacuum System Oven Furnace
Parameter characteristics:
1. Product Model: Non-standard Customization
2 Operating Temperature: RT ~ 200°C
3. Maximum Temperature: 200°C
4. Furnace Cavity Dimensions: 900×1000×1600mm (W×H×D)
5. Heating Element: Ceramic Fiber Heating Plate
6. Controlled Atmosphere: 1 channel of nitrogen
7. Temperature Control Accuracy: ±1°C
8. Control Mode: Imported temperature controller with PID parameter auto-tuning
9. Number of Temperature Control Points: 3 points (front, middle, and rear)
10. Number of Temperature Measurement Points: 8 SMD thermocouples
11.Vacuum Detection: Vacuum gauge tube and vacuum gauge for supporting detection
12. Alarm and Protection: Over-temperature, broken thermocouple, vacuum pump overload, low pressure, under-reverse phase, etc. audio-visual alarm protection
13. Design Power: ~12kW
14. Power Supply: Three-phase five-wire, 380/220VAC, 50Hz
15. Equipment Weight: ~1200Kg
16.Overall Dimensions: 1690mm×1550mm×2290mm (W×H×D).

Table One: Delivery Checklist

NameMain ContentQuantity
Basic ComponentsKiln main body1 unit
Inspection certificateCertificate of conformity for each major purchased component1 set
Technical documentsInstruction manual, technical documents for each major purchased component, etc.1 set
Key ComponentsHeating elementCeramic fiber heating plate1 set
Touchscreen10-inch touchscreen1 unit
Temperature controllerYokogawa temperature controller1 unit
Screw pumpBaoSi GSD120 B screw pump1 unit
SMD thermocouples8 sets
Spare PartsSMD thermocouples2 sets

Normal Operating Conditions of the Equipment

1 Environmental Conditions: Temperature 0 - 40°C, humidity ≤ 80% RH, no corrosive gases, and no strong air flow disturbances.

2 Floor Requirements: Level, without obvious vibration, with a bearing capacity > 500 Kg/m².

3 Power Conditions: Capacity greater than 24 kVA, three-phase five-wire system, voltage 220/380 V, frequency 50 Hz. Live wire: yellow, green, red; neutral wire: blue; earth wire: yellow-green.

4 Installation Site: 2500 mm × 3000 mm × 3000 mm (W × H × D), with an installation area greater than 8 m².


Laboratory Furnace 200º C Vbf1200-02 High Vacuum System Oven Furnace
