| Categories | Stainless Steel Butt Welded Pipe Fittings |
|---|---|
| Brand Name: | YUHAO |
| Model Number: | Butt Weld Pipe Fittings |
| Certification: | ASTM, AISI, GB, DIN, JIS |
| Place of Origin: | China |
| MOQ: | 100kgs |
| Price: | Negotiation |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 2000tons/per month |
| Delivery Time: | 15days |
| Packaging Details: | Standard sea worth bundles,Standard Plywood cases |
| wall thickness: | SCH10-SCH150 |
| customized support: | OEM, ODM, OBM |
| shape: | Elbow |
| surface treatment: | Mirror, Polishing, Sandblasting, Sand Rolled |
| Connection Type: | Butt Welded |
| Application: | Oil, Gas, Chemical, Petrochemical, Power, Food & Beverage Industry, Wastewater Treatment, Compressed Air Systems |
| Size: | DN10-DN850 |
| Standard: | EN, ASTM, AISI, DIN, JIS |
| Grade: | 304, 304L, 316, 316L, 310s |

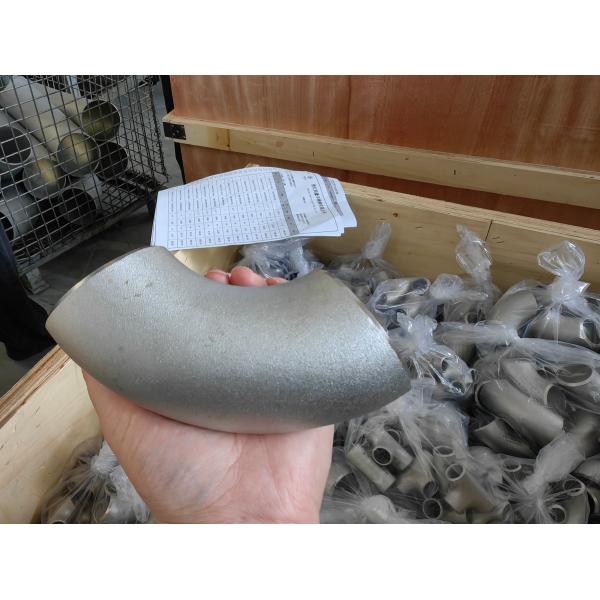

DN10-DN850 SCH10-SCH150 Stainless Steel Elbow SS BW Pipe Fitttings 90 Degree Elbow
►Products description
Engineered for high-performance industrial use, these 304 stainless steel socket weld elbows deliver superior corrosion resistance, exceptional durability, and optimized flow efficiency. Constructed from premium-grade 304 stainless steel, they are built to endure extreme pressure and temperature conditions, making them an ideal choice for the chemical, petrochemical, and oil & gas industries.
The long-radius design promotes smooth fluid flow, reducing turbulence and minimizing pressure drop for enhanced system efficiency. The socket weld connection ensures a secure, leak-proof joint, while the 90-degree angle allows for efficient directional changes in piping layouts.
Precision-manufactured to meet stringent industry standards, these elbows guarantee seamless integration, reliable operation, and long-lasting performance in even the most demanding piping systems.
►Product Size
Norminal dimeter | Outside diante | Center to end | Center to Conter | kg／pc 90°L/R Elbow Approx weight | |||||||
| DN | NPS | OD | B | A | O | sch5s | sch10S | sch20S/LG | sch40S/STD | sch80S/XS | sch80 |
| 15 | 1/2 | 18 21.3 | 16 | 38 | 76 | 0.04 0.05 | 0.05 0.06 | 0.06 0.07 | 0.06 0.08 | 0.08 0.10 | 0.08 0.10 |
| 20 | 1/4 | 25 26.7 | 19 | 38 | 76 | 0.06 0.06 | 0.07 0.08 | 0.09 0.09 | 0.09 0.10 | 0.12 0.13 | 0.12 0.13 |
| 25 | 1 | 32 33.4 | 22 | 38 | 76 | 0.07 0.08 | 0.12 0.13 | 0.14 0.14 | 0.14 0.15 | 0.19 0.19 | 0.19 0.19 |
| 32 | 1 1/4 | 38 42.2 | 25 | 48 | 96 | 0.11 0.13 | 0.18 0.20 | 0.21 0.23 | 0.23 0.26 | 0.30 0.34 | 0.30 0.34 |
| 40 | 1 1/2 | 45 48.3 | 29 | 57 | 114 | 0.16 0.17 | 0.26 0.28 | 0.30 0.32 | 0.34 0.37 | 0.45 0.49 | 0.45 0.49 |
| 50 | 2 | 57 60.3 | 35 | 76 | 152 | 0.27 0.29 | 0.45 0.47 | 0.57 0.61 | 0.62 0.65 | 0.85 0.90 | 0.85 0.90 |
| 65 | 2 1/2 | 76 73 | 44 | 95 | 190 | 0.58 0.55 | 0.82 0.79 | 0.97 0.93 | 1.35 1.30 | 1.79 1.71 | 1.79 I.7I |
| 80 | 3 | 89 | 51 | 114 | 228 | 0.82 | 1.17 | 1.51 | 2.04 | 2.76 | 2.76 |
| 90 | 3 1/2 | 101.6 | 57 | 133 | 266 | 1.09 | 1.56 | 2.03 | 2.85 | 3.92 | 3.92 |
| 100 | 4 | 108 114 | 64 | 152 | 304 | 1.32 1.40 | 1.90 2.01 | 2.47 2.61 | 3.64 3.85 | 5.05 5.35 | 5.05 5.35 |
| 125 | 5 | 133 141.3 139.7 | 79 | 190 | 380 | 2.67 2.84 2.81 | 3.27 3.47 3.43 | 4.74 5.05 4.99 | 6.14 6.54 6.46 | 8.72 9.31 9.19 | 8.72 9.31 9.19 |
| 150 | 6 | 168.3 159 165 | 95 | 229 | 458 | 4.10 3.86 4.01 | 5.01 4.72 4.91 | 7.29 6.88 7.14 | 10.24 9.64 10.03 | 15.41 14.50 15.09 | 15.41 14.50 15.09 |
| 200 | 8 | 219 216 | 127 | 305 | 610 | 7.12 7.03 | 9.63 9.49 | 15.94 15.71 | 20.51 20.22 | 31.17 30.71 | 31.17 30.71 |
| 250 | 10 | 273 267.4 | 159 | 381 | 762 | 13.62 13.34 | 16.74 16.39 | 24.97 24.44 | 36.33 35.56 | 49.12 48.06 | 57.83 56.57 |
| 300 | 12 | 325 323.9 318 | 190 | 457 | 914 | 22.66 22.58 22.16 | 26.10 26.01 25.53 | 35.79 35.66 35.00 | 53.58 53.40 52.39 | 70.69 70.44 49.11 | 95.81 95.46 93.63 |
| 350 | 14 | 377 355.6 | 222 | 533 | 1066 | 30.71 28.95 | 36.98 34.86 | 61.36 57.80 | 72.80 68.56 | 96.17 90.52 | 141.75 133.27 |
| 400 | 16 | 426 406.4 | 254 | 610 | 1220 | 42.05 40.09 | 47.90 45.67 | 79.55 75.82 | 94.42 89.98 | 124.87 118.95 | 206.35 196.35 |
| 450 | 18 | 478 457.2 | 286 | 686 | 1372 | 53.11 50.78 | 60.52 57.86 | 100.60 96.14 | 199.44 114.14 | 158.10 151.03 | 296.35 276.29 |
| 500 | 20 | 529 508 | 318 | 762 | 1524 | 74.47 71.48 | 86.18 82.72 | 123.86 118.87 | 147.12 141.14 | 194.86 186.94 | 391.34 375.00 |
| 550 | 22 | 559 | 343 | 838 | 1676 | 86.58 | 100.21 | 144.06 | 171.14 | 226.75 | 495.44 |
| 600 | 24 | 630 610 | 381 | 914 | 1828 | 123.32 119.37 | 141.21 136.64 | 177.37 171.67 | 210.78 203.98 | 279.45 270.40 | 661.10 - |
| 650 | 26 | 660 | 406 | 991 | 1982 | -- | - | 201.59 | 239.58 | 317.72 | - |
| 700 | 28 | 720 711 | 438 | 1067 | 2134 | - | - | 237.03 234.03 | 281.75 278.18 | 373.80 369.04 | - |
| 750 | 30 | 762 | 470 | 1143 | 2286 | 213.9 | 266.23 | 268.89 | 319.66 | 424.2 | - |
| 800 | 32 | 820 813 | 502 | 1219 | 2438 | - | - | 308.83 306.16 | 367.20 364.02 | 487.42 483.20 | - |
| 850 | 34 | 864 | 533 | 1295 | 2590 | - | - | 345.86 | 411.27 | 546.04 | - |
| 900 | 36 | 920 914 | 565 | 1372 | 2744 | - | - | 390.39 387.83 | 464.28 461.22 | 616.56 612.48 | - |
| 950 | 38 | 965 | 600 | 1448 | 2896 | - | - | 432.25 | 514.21 | 682.98 | - |
| 1000 | 40 | 1016 2020 | 632 | 1524 | 3048 | - | - | 479.29 481.19 | 570.09 572.35 | 757.33 760.35 | - |
| 1050 | 42 | 1067 | 660 | 1600 | 3200 | - | - | 528.65 | 628.85 | 835.51 | - |
| 1100 | 44 | 1118 1120 | 695 | 1676 | 3352 | - | - | 580.43 581.48 | 690.49 691.73 | 917.53 919.19 | - |
| 1150 | 46 | 1168 | 727 | 1753 | 3506 | - | - | 634.45 | 754.79 | 1003.1 | - |
| 1200 | 48 | 1220 | 759 | 1829 | 3658 | - | - | 691.63 | 822.85 | 1093.7 | - |
►Factroy Shoot
►FAQ
Q1: Where is your factory located?
A: Our factory is located in wenzhou City, zhejiang Province,China.
Q2: How is the after-sales service?
A: Quality are promised. If our products are not meet the contract we would like to send free goods to you.
Q3: Which payment terms you can accept?
A: We can accept TT,LC,DP,DA,Western Union or Negotiation.
Q4: How do you ensure product quality?
A: We have a dedicated team of experts who rigorously inspect each stage of the production process. Every product undergoes quality testing at our factory before it is shipped.
Q5: Can you reply to messages in a timely manner?
A: Contact us with your detailed inquiry, you will be replied within 6 hours.
|
