| Categories | Rod Ends Bearing |
|---|---|
| Brand Name: | SFT |
| Model Number: | SPHS6EC |
| Place of Origin: | China |
| MOQ: | negotiable |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS/MONTH |
| Delivery Time: | 20-45DAYS |
| Packaging Details: | carton,pallet |
| Type: | Stainless steel Rod Ends |
| Ball Material: | Stainless steel 440C, heat treated |
| Body Material: | Stainless steel 304, turned |
| Race: | PTFE composite |
| Sliding contact surfaces: | Steel / PTFE composite |
| Feature: | Low Noise. Long Life .High Precision,High Corrosion resistant |

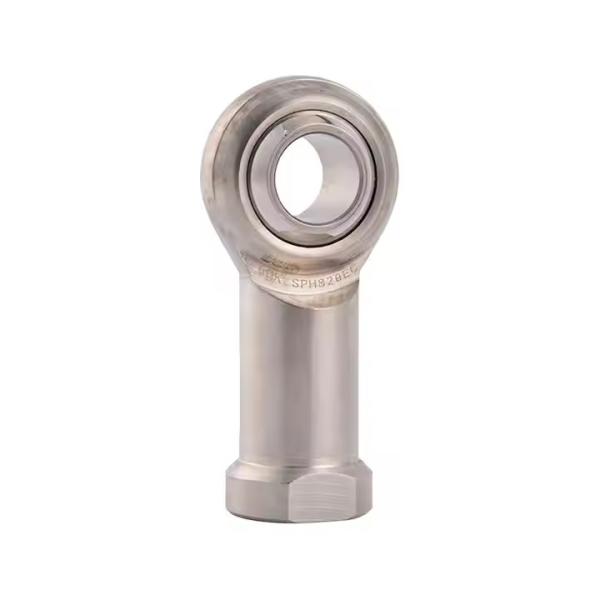

High Corrosion Resistance SPHS6EC Stainless Steel Rod End Bearing for Heavy Trucks
| Bearing No. | Dimensions(mm) | Ball dia | a0 mis. angle | Load ratings (KN) | weight ≈Kg | |||||||||||||
| d H7 | B | C1 | d1 | d2 | d3-6H | h1 | L3 | (L4) | L5 | d4 | d5 | sw | Dynamic | Static | ||||
| SPHS5EC | 5 | 8 | 6 | 7.7 | 16 | M5 | 27 | 11 | 35 | 4 | 9 | 11 | 9 | 11.11 | 13 | 3.3 | 6.2 | 0.016 |
| SPHS6EC | 6 | 9 | 6.75 | 8.9 | 18 | M6 | 30 | 13 | 39 | 5 | 10 | 13 | 11 | 12.7 | 13 | 4.7 | 7.8 | 0.025 |
| SPHS8EC | 8 | 12 | 9 | 10.3 | 22 | M8 | 36 | 16 | 47 | 5 | 12.5 | 16 | 14 | 15.87 | 14 | 7.7 | 13.2 | 0.043 |
| SPHS10EC | 10 | 14 | 10.5 | 12.9 | 26 | M10 | 43 | 20 | 56 | 6.5 | 15 | 19 | 17 | 19.05 | 13 | 10.4 | 17.3 | 0.072 |
| SPHS12EC | 12 | 16 | 12 | 15.4 | 30 | M12 | 50 | 23 | 65 | 6.5 | 17.5 | 22 | 19 | 22.22 | 13 | 13.5 | 22.7 | 0.107 |
| SPHS14EC | 14 | 19 | 13.5 | 16.8 | 34 | M14 | 57 | 27 | 74 | 8 | 20 | 25 | 22 | 25.4 | 16 | 17.2 | 28.2 | 0.160 |
| SPHS16EC | 16 | 21 | 15 | 19.3 | 38 | M16 | 64 | 32 | 83 | 8 | 22 | 27 | 22 | 28.58 | 15 | 21 | 35.1 | 0.210 |
| SPHS18EC | 18 | 23 | 16.5 | 21.8 | 42 | M18X1.5 | 71 | 35 | 92 | 10 | 25 | 31 | 27 | 31.75 | 15 | 25 | 43.2 | 0.295 |
| SPHS20EC | 20 | 25 | 18 | 24.3 | 46 | M20x1.5 | 77 | 39 | 100 | 10 | 27.5 | 34 | 30 | 34.92 | 14 | 29.8 | 50.3 | 0.380 |
| SPHS22EC | 22 | 28 | 20 | 25.8 | 50 | M22x1.5 | 84 | 42 | 109 | 12 | 30 | 37 | 32 | 38.1 | 15 | 36.2 | 63.9 | 0.490 |
SPHS..EC high corrosion resistance stainless steel rod ends bearings Characteristic:
Stainless steel material; high corrosion resistance; self-lubricated; maintenance free; steel/PTFE; apply to high corrosion resistance application; turned body surface.
|
