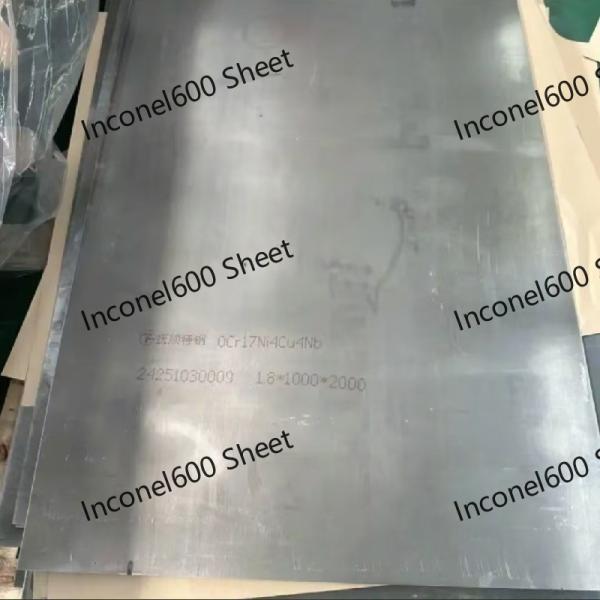

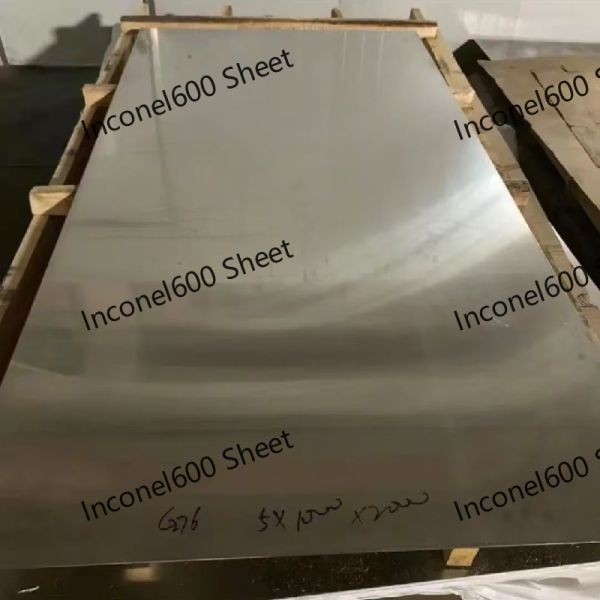

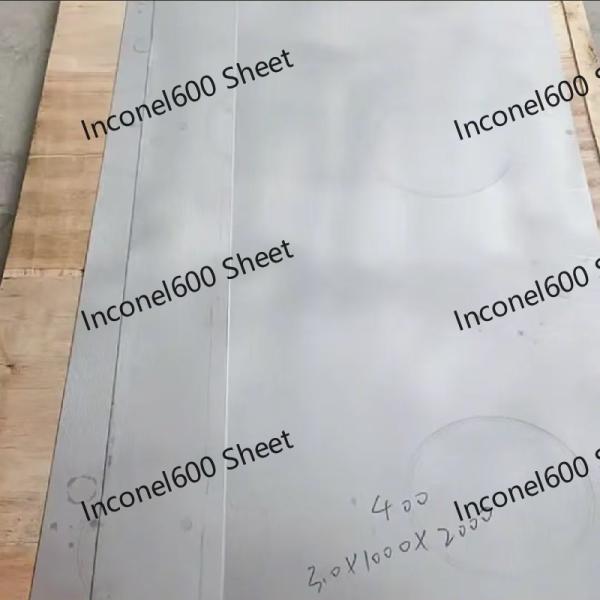

Inconel 600 Plate Sheet UNS N06600 Thickness 0.5 - 16.0mm 4ft*8ft /5ft*10ft

Chemical composition of Inconel 600 Plate

• Nickel (Ni): ≥72%
• Chromium (Cr): 14-17%
• Iron (Fe): 6-10%
• Manganese (Mn): ≤1.0%
• Copper (Cu): ≤0.5%
• Carbon (C): ≤0.15%
• Silicon (Si): ≤0.5%
• Sulfur (S): ≤0.015%

Physical properties of Inconel 600 Plate

• Density: 8.47 g/cm³
• Melting point: 1354-1413°C
• Coefficient of thermal expansion: 13.3µm /m°C (20-100°C)
• Thermal conductivity: 14.9 W/m·K (100°C)
• Resistivity: 1.12µΩ ·m (20°C)

Mechanical properties of Inconel 600 Plate

• Tensile strength: ≥550 MPa
• Yield strength: ≥240 MPa
• Elongation: ≥30%

Standard of Inconel 600 Plate

• ASTM B168: Standard Specification for nickel-chromium iron Alloy Plates, Sheets, and strips
• AMS 5540: Nichrome plates, sheets and strips
• DIN 17750: Nickel and nickel alloy plates, sheets and strips

Peculiarity of Inconel 600 Plate

• Corrosion resistance: Performs well in high temperature and corrosive environments.
• High temperature strength: maintain high mechanical strength at high temperatures.
• Oxidation resistance: It has good antioxidant properties in high temperature oxidation environment.
• Good workability: easy to process and weld.

Advantage of Inconel 600 Plate

• Wide application: Suitable for a variety of high temperature and corrosive environment.
• Long life: It can maintain long-term stable performance under harsh conditions.
• Versatility: Can be used in a variety of industrial applications.

Apply of Inconel 600 Plate

• Aerospace: Used in the manufacture of high-temperature components such as turbine blades and combustion chambers.
• Chemical: For the manufacture of reactors, heat exchangers and pipes.
• Nuclear industry: Used to manufacture nuclear reactor components.
• Heat treatment: Used to manufacture heat treatment equipment and fixtures.
• Electronics: Used to manufacture electronic components and semiconductor devices.

Inconel 600 boards are the material of choice in many industrial fields due to their excellent performance and wide range of applications.
