| Categories | Industrial Casters |
|---|---|
| Brand Name: | Dajin |
| Model Number: | HTC-001 |
| Certification: | Rosh/CE/IOS |
| Place of Origin: | China |
| MOQ: | 500 |
| Price: | 5.98 |
| Payment Terms: | T/T,L/C |
| Delivery Time: | 25 |
| Packaging Details: | 21X21X21 cm |

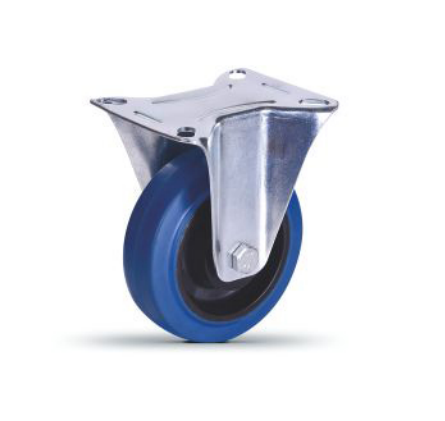

| Name: | Industrial High-Elasticity TPR Caster Wheel |
| Wheel Material: | High-Elasticity TPR |
| Thread Size: | M12 × 30 mm |
| Wheel Diameter: | 75 mm / 100 mm / 125 mm / 160 |
| Tread Width: | 25mm / 30mm / 37mm / 40mm / 50mm |
| Installation: | Top-plate mount |
| Load Height: | 95mm / 125mm / 153mm / 195mm / 240mm |
| Hole Spacing: | 60x45mm / 80x60mm / 80x60mm / 105x75mm / 105x75mm |
| Hole Size: | 8.5mm / 8.5mm / 8.5mm / 12.5mm / 12.5mm |
| Load Capacity: | 50kg / 70kg / 80kg / 120kg / 130kg per wheel |
| Plate Size: | 81x65mm / 100x80mm / 100x80mm / 130x103mm / 130x103mm |
✔ Advanced TPR Tread
High-elasticity thermoplastic rubber with Shore A 70±5 hardness
Non-marking & chemical-resistant
Impact-resistant design
✔ Premium Construction
Cold-rolled steel bracket with triple-layer zinc plating
Dual-sealed ball bearings with corrosion-resistant races
✔ Performance Optimized
Noise-damped operation
Static load capacity: 180kg / Dynamic: 120kg
Delivers superior shock absorption for sensitive equipment while maintaining reliable mobility
Reduces vibration transmission by 40% compared to rigid wheels, protecting both cargo and floors
Maintains consistent flexibility across temperature extremes for all-condition performance
► Cold Chain Logistics
Refrigerated display cases (-25°C)
Frozen food transport carts
► Precision Equipment
Laboratory instrument movers
Medical imaging transport systems
► Industrial Material Handling
Assembly line conveyor replacements
Sensitive component transport carts
► Special Environments
Food processing wet zones
Automotive paint shops
| Standard Size | Material | Wheel Diameter | Wheel Width | Installation Height | Plate Size | Bolt Hole Spacing | Bolt Hole Diameter | Load Capacity |
|---|---|---|---|---|---|---|---|---|
| 3 inch | PP / PU / Elastic rubber | 75mm | 25mm | 95mm | 81×65mm | 60×45mm | 8.5mm | 50kg |
| 4 inch | 100mm | 30mm | 125mm | 100×80mm | 80×60mm | 8.5mm | 70kg | |
| 5 inch | 125mm | 37mm | 153mm | 100×80mm | 80×60mm | 8.5mm | 80kg | |
| 6 inch | 160mm | 40mm | 195mm | 130×103mm | 105×75mm | 12.5mm | 120kg | |
| 8 inch | 200mm | 50mm | 240mm | 130×103mm | 105×75mm | 12.5mm | 130kg |
