Agriculture Deep Well Solar Water Pump 12V/24V for Water Supply

Agriculture Solar Powered Submersible Pumps Deep WellSolar Water Pump

According to the structural form and driving mode, deep well pumps can be divided into four product series, which are suitable for different working conditions:
1. Vertical long shaft deep well pump (L-type)
Technical features: The motor is placed on the ground and drives the downhole impeller through a long transmission shaft, with a head range of 30-300m and a flow rate of 10-200m ³/h
Core advantage: Easy to maintain on the ground, suitable for clean water sources with small amounts of sediment (≤ 100g/m ³)
Typical applications: Large scale farmland irrigation systems (single pump can cover more than 500 acres of farmland), industrial cooling water circulation
2. Submersible electric pump (QJ type)
Technical features: Integrated motor and pump body submerged underwater, IP68 protection level, water resistance depth of 50-300m, supporting 220V single-phase/380V three-phase power supply
Core advantages: No transmission shaft energy loss, efficiency improvement of 10%, noise<75dB (ground measurement)
Typical applications: household well water supply (common flow rate 5-20m ³/h, suitable for 100-150mm well diameter), decentralized water supply in mountainous areas
3. Horizontal deep well pump (HW type)
Technical features: horizontally installed on the wellhead platform, adopting a double suction impeller design, with a single-stage flow rate of up to 500m ³/h and a head of 10-50m
Core advantage: Preferred for high flow and low head scenarios, can be directly connected to horizontal water pipelines
Typical applications: Mine drainage (with a daily discharge of over 10000m ³ per pump), urban groundwater recharge projects
4. Special deep well pump
High pressure resistant type: with a pressure bearing capacity of up to 6MPa, suitable for geothermal wells (water temperature ≤ 120 ℃) and oil associated water extraction
Permanent magnet frequency conversion type: equipped with IE5 level permanent magnet synchronous motor, frequency conversion range of 10-50Hz, energy saving rate of 30%, supporting PLC remote control

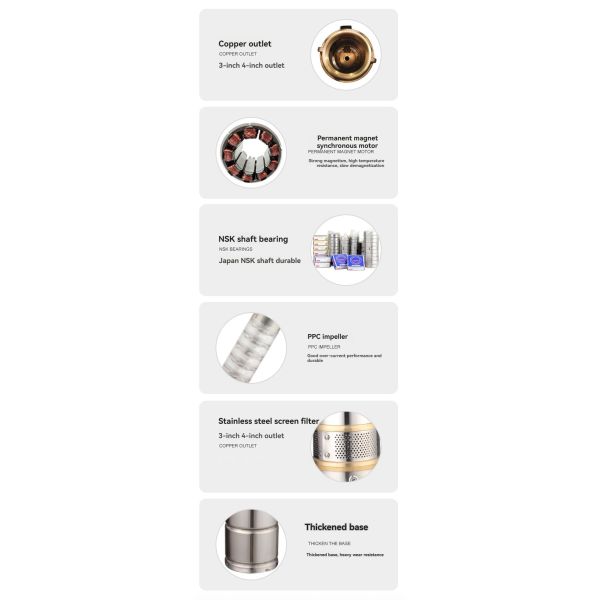

Solar deep well pump: matched with 12V/24V DC motor, equipped with MPPT controller, with an average daily working time of 8-10 hours (under standard lighting conditions)
