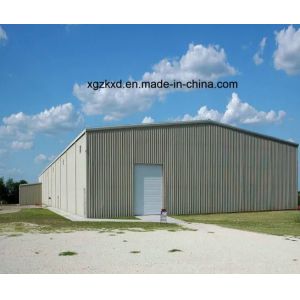

Q255 Steel Structure Prefab Metal Airplane Hangar Prefabricated Aircraft Hangars

KXD steel structure prefabricated metal hangar/shed is designed specifically for industrial warehousing, equipment parking and other scenarios, supporting customized services throughout the entire process. Whether or not you have design drawings, our engineers can quickly provide exclusive solutions by providing information such as size parameters, wind load requirements, and coating material preferences.

Ⅰ. Core Configuration and Functions

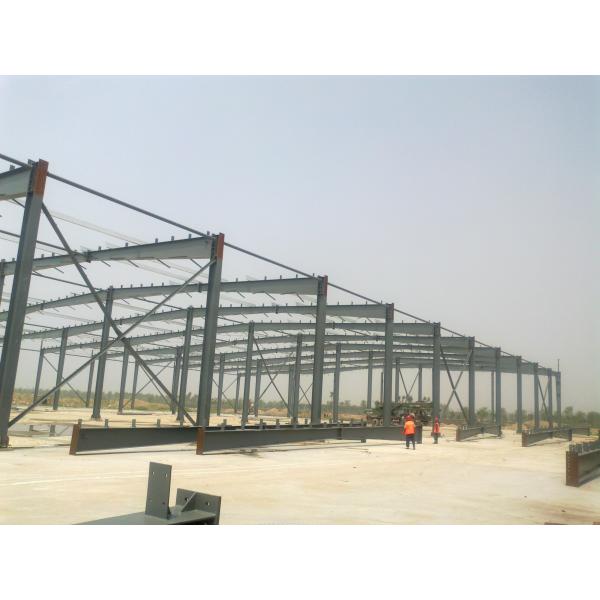

1. Steel frame system
-Main structure: H-shaped steel columns and beams are used, combined with C-shaped purlins and supporting components (such as tension rods and inter column supports) to form a stable mechanical framework;
-Surface treatment : Optional Spray painting anti-corrosion (conventional environment) or Hot dip galvanizing process (high humidity/salt spray environment), corrosion resistance is improved by 3-5 times.

2. Enclosure system
-Roof and Wall:
-Basic model: 0.3-0.6mm corrugated steel plate, economical and durable, suitable for ordinary storage;
-Upgraded version: 50-150mm insulated steel sandwich panel (core material options include EPS, rock wool, polyurethane), meeting insulation and fire prevention needs (such as cold storage and precision equipment storage).

3. Doors, windows, and functional components
-Door :
-Sliding door : equipped with roof shading and rain protection, suitable for high-frequency large equipment access;
-Rolling shutter door: electrically operated opening and closing, space saving, suitable for automated management scenarios.
-Window : PVC window or aluminum alloy window, optional high transmittance glass to improve indoor lighting.
-Additional Configuration: Install roof ventilators (to improve air circulation), transparent lighting panels (to save energy and reduce costs), stainless steel drainage ditches, and PVC downspouts (for efficient drainage) as needed.

Ⅱ. Core Advantages

-Environmental Performance :The main steel material can be 100% recycled, with zero construction waste, meeting green building standards.
Cost effectiveness : Prefabricated production reduces labor costs by 30%+<br>- Low maintenance costs (galvanizing process requires 10 years of maintenance free)
-Structural safety : Seismic fortification intensity up to 9 degrees (higher than national standard requirements)<br>- Wind resistance level 10 (customizable up to level 12)
-Construction efficiency :Factory prefabrication+on-site assembly, reducing the construction period by 50% compared to traditional processes. The installation of a 1000 square meter hangar can be completed in as fast as 15 days.
-Service life: The main structure design life is 50 years, far exceeding traditional concrete buildings (25-30 years).
-Exterior Design:Color steel plates can be selected in multiple colors (such as silver gray, sea blue), paired with a streamlined ceiling, combining functionality and aesthetics.

Ⅲ.Customized Service Process

1. Requirement Communication :
-There are drawings: submit CAD/Revit files directly, and the engineer confirms the feasibility of the structure;
-No drawings: Provide the following parameters:
-Size (length x width x eaves height);
-Local wind load (kN/㎡), snow load (if any);
-Selection of roof/wall materials (steel plate thickness, sandwich material);
-Special requirements (such as crane load, explosion-proof design).
2. Plan output : Provide preliminary design drawings (including structural layout, material list, and cost budget) within 24 hours.
3. Production and Installation : After confirming the plan, the factory will complete the prefabrication within 30 days, and the on-site team will guide the installation throughout the process.

Ⅳ. Typical Application Scenarios

-Aviation field : Aircraft parking garage, maintenance workshop, supporting large-span design (single span up to 36 meters);
-Industrial warehousing: heavy-duty equipment warehouse, logistics sorting center, compatible with cranes and automated transmission equipment;
-Agriculture/Energy : Agricultural machinery parking shed, photovoltaic equipment storage warehouse, customizable wind and sand resistant, weather resistant structure.

Immediately consult : Send your requirements, or leave a message directly informing you of project parameters. We will create an efficient and durable steel structure space solution for you as soon as possible.
