| Categories | Brushless DC Motor |
|---|---|
| Brand Name: | Masing Motor |
| Model Number: | MS-BL2430 |
| Certification: | 16949,RohS,CE,ISO |
| Place of Origin: | China |
| MOQ: | 1000 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000000piece/per month |
| Delivery Time: | 3-5 work weeks |
| Packaging Details: | Carton box |
| Product Name: | Mini BLDC Motor |
| Shaft tpye: | Round,Flat ,D-cut ect |
| Motor size: | φ24.4mm*30.8mm |
| Motor type: | Brushless Motor |
| Direction of motor: | CW&CCW |
| Signal: | Signal Function Available |
| Structure: | Built-in driver or external driver |
| PWM: | PWM Countrol(Standard) |
| Life Expectancy: | 800H-10000H |
| Power: | 0.2W-3W(Internal Drive) |
24mm Brushless Dc Motor 12v Title:
BL2430 24mm Brushless Dc Motor 12v 24v 6000rpm Dc Motors Brushless With Built-In Driver For Medical Apparatus
24mm Brushless Dc Motor 12v Description:
Rated Voltage range:DC 6v-30V
Rated Speed: 1000RPM-10000RPM
The motor speed is proportional to the motor voltage
Rated Torque :0.5gf.cm-200gf.cm
The torque of the motor is nronortional to the speed of the motor
Motor Type :Brushless DC Motor
Motor Shaft diameter :φ2.0mm

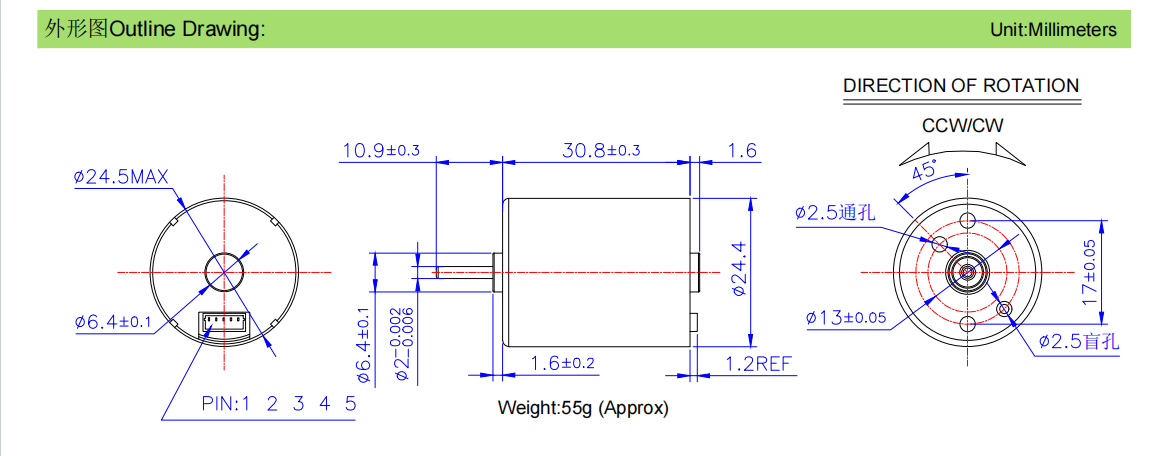

Motor Size: φ24.4*30.8mm,diamter 24.4mm ,30.8mm Length micro brushless motor
Suitable to small diameter, low noise and big torque application
Motor default direction:CW &CCW available
Structure selection:Built-in driver or external driver
Can be match with wheel, One shaft one wheel or one motor, one wheel
Working temperature:-40~+60°c
Widely used in :Smart home, robots, office supplies, power tools, medical equipment,
We can provide samples for your test. 24mm Brushless Dc Motor 12v Key Attributes:
Smart home, robots, office supplies, power tools,Cosmetic instrument, Smart Home, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner

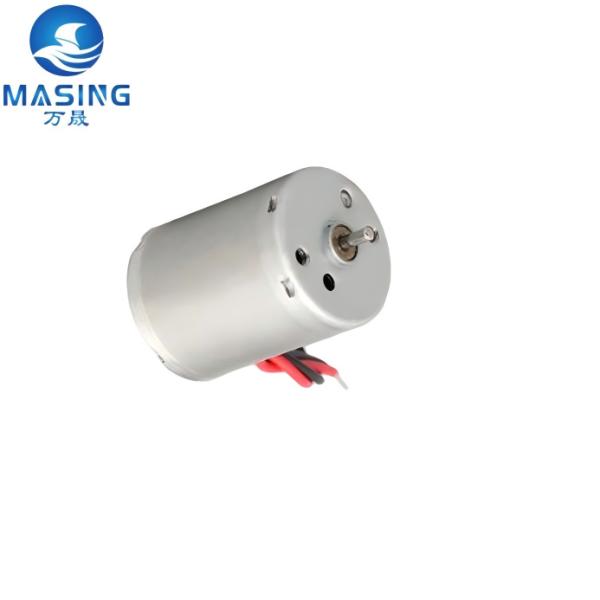

24mm Brushless Dc Motor 12v Product Photo:
24mm Brushless Dc Motor 12v Product Spec:
12V High Performance DC Brushless Motor Typical Applications
Smart home, robots, office supplies, power tools,precision instruments, automotive electronics,Personal Care,Car,
Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, Medical Imaging Equipment,Toys,Massager ,Robot Vacuum Cleaner
Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

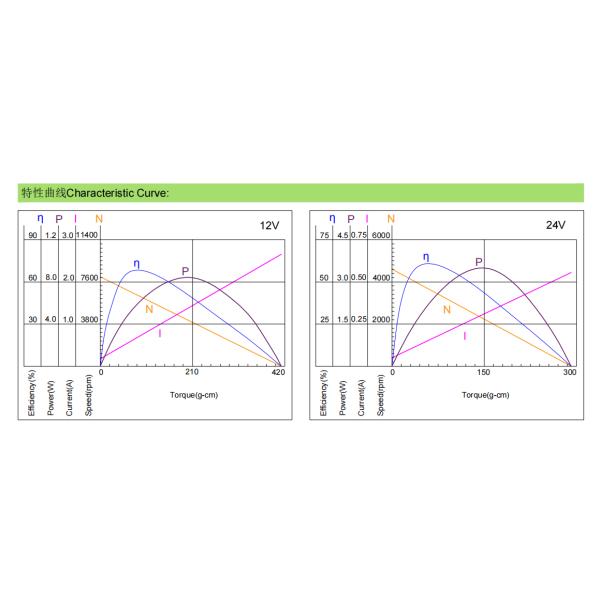

| Motor Data: | |||||||||||
Motor Model | Votage | No Load | At Maximum Efficiency | Stall | |||||||
Operating Range | Rated | Current | Speed | Current | Speed | Torque | Power | Efficiency | Current | Torque | |
| A | rpm | A | rpm | g-cm | W | % | A | g-cm | |||
| BL2430*** | 9~14V | 12V | 0.17 | 8000 | 0.67 | 6380 | 83.1 | 5.4 | 67.7 | 2.65 | 411 |
| BL2430*** | 19~26V | 24V | 0.05 | 4600 | 0.18 | 3550 | 67.2 | 2.4 | 60.0 | 0.58 | 295 |
Packaging and delivery:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 5000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$8/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Smart home
Q1: What's the price?
A1: We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.
Q2:What's the MOQ?
A2:We try to meet every client's requests and don't want to disappoint our clients.So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.
Q3:Can you send some samples before the order?
A3:Yes of course,we must send the sample to confirm the quality with you first.UPS,TNT,FEDEX or DHL are all available.
Q4:Can you make our logo on the products?
A4: Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be labeled on the motors.
Q5: How to select a suitable motor?
A5: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
|
