Oil Sludge Treatment System Centrifugal Pumps Compact Centrifugal Slurry Pump

SB 2×3 Centrifugal Mud Pump for Oil Sludge Treatment System Compact and Reasonable Structure

• Maximize fluid transfer efficiency with SB series’ optimized impeller and volute design. The SB2×3J-8 model achieves 54% efficiency at 40m³/h flow and 16m head, reducing energy consumption with 5.5kW motor power. Wide-flow-path impellers prevent clogging from solids-laden mud, minimizing downtime in shale shaker or desilter applications.
• •

  ​​Solids Control​​: SB2×3J series handles 25–55m³/h for desander/desilter feed in mud recycling systems.

• •

  ​​Cuttings Evacuation​​: Non-clogging impellers transport ≤15mm solids without jamming.

• •

  ​​Rig Support​​: Compact size (≤1.35m length) enables deployment in mobile land rigs or offshore platforms.

  Technical specs: Max 11kW power, 1760 RPM speed, 320kg weight.

Features
Patented Seal Technology - Service life is 6 times longer than an ordinary mechanical seal. (Patent No. ZL200720079857.2)
High Efficiency - The impeller and pump shell port are designed with optimal streamlining.
Long Service Life - The overflow parts are made of highly wear-resistant cast iron.
Non-clogging - The impeller is designed with a wide flow path.
Patented Appearance - Compact and reasonable structure (Patent No. ZL200730094452.1).

Chengdu West Petroleum Equipment Co., Ltd. is a state-level high-tech company integrating scientific research, production and sales. With registered capital of CNY 62.23 million, the Company covers an area of 140 acres and has a plant area of 65,000 m². The amount of its total assets is over CNY 500 million. It also has import and export rights in foreign trade.

The Company has won the title of National High-Tech Enterprise, National Enterprise with an Advantage in Intellectual Property Rights, Sichuan Enterprise Technical Center, Sichuan second-class Enterprise in Work Safety Standardization, Sichuan Cultivated Enterprise for Construction Innovation and Chengdu High-End Equipment Manufacturing Enterprise. The SY/T5612-2007,2018 solid control industry standards are drafted by the Company. The Company has been certified by management systems such as ISO9001, 14001, 45001, API1 and HSE and has passed DNV and CCS product type certification. For now, it is the largest professional manufacturer of drilling solid control and oilfield environmental protection equipment in China.

From "manufacturing" to "intelligent manufacturing", Chengdu West Petroleum Equipment Co., Ltd. sticks to the pursuit of "Be Rooted in China, Look at the World, Persist in Profession and Work Hard to Serve", attaches importance to technical development and has obtained nearly 100 patents, including 28 patents for invention. The Company has completed share reform and possesses a well-trained scientific research team composed of many senior engineers, doctors, masters and other professionals, with core and backbone technicians holding shares of the Company. The Company invests at least 7% of its business income in research and development, and it is equipped with shale shaker test bench, centrifuge test bench, sand pump test bench, agitator test bench and scientific research equipment and facilities with complete performance and data as well as an oil and gas field material analysis and assay center. The Company also cooperates with relevant universities and institutes, such as Southwest Petroleum University, Chengdu University of Technology and CNOOC China Limited, to build a technical innovation system combining industry, university and research.

With continuous innovation, the Company always grasps scientific and technological development strategies and trends of the industry equipment to comprehensively improve its technology and production capacity, strive to form high-end brand products with independent intellectual property rights, create core competitive advantages, and ensure the strategic goal of being a domestic leading and international advanced industry leader in the drilling solid control product field, so as to keep the products of the Company among the best in the world.

The products of the Company have been used by various drilling companies and main drilling machine manufacturers subordinated to three main petroleum groups in China, and have been directly exported to more than 30 countries and regions such as Russia, the Middle East, Southeast Asia, Europe and America with supporting drilling machines, winning the unanimous praise. The company has undertaken relevant technical development projects of China National Offshore Oil Corporation, China Oilfield Services Limited, Ministry of Science and Technology, Sichuan Province and Chengdu City. Its hydraulic centrifuge is recognized as the first set in China. The comprehensive evaluation of scientific research achievements such as shale shaker and drilling waste recycling systems are international advanced level. Its developed centrifuge, drilling centrifugal pump and other products have been successively used for West-To-East Gas Pipeline Project, Sichuan-Chongqing Shale Gas Development Project and many offshore oil drilling platforms and module drilling machines.

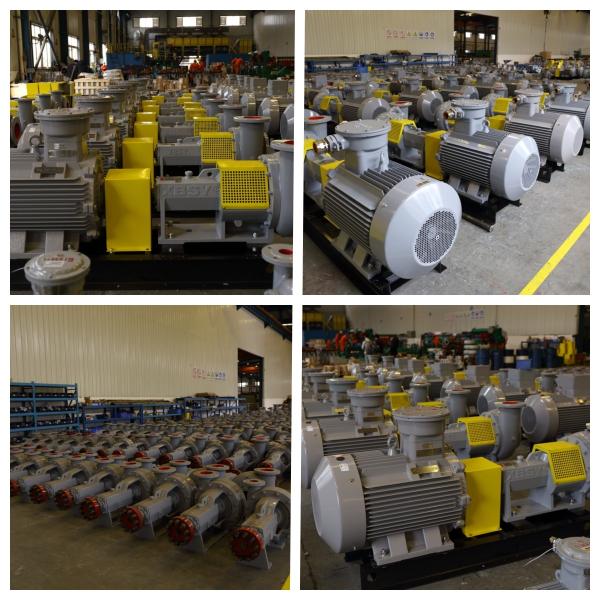

Chengdu West Petroleum Equipment Co., Ltd. has more than 500 sets of modern processing equipment such as processing center, digital control plano-milling machine, laser cutting machine, large lathe, boring lathe, high-precision grinding machine and sand-blasting machine, painting equipment as well as line processing operation. The Company pursues the concept that the product is the reputation and dignity, implements comprehensive quality management and lean production, so as to ensure processing and manufacturing accuracy of production equipment and product quality. The Company has an annual output of 500 large-displacement, high-speed, medium-speed, variable-frequency, hydraulic and intelligent centrifuges, more than 500 linear, balanced elliptical and double-deck shale shakers, 7000 pumps and 100 systems of various types.
