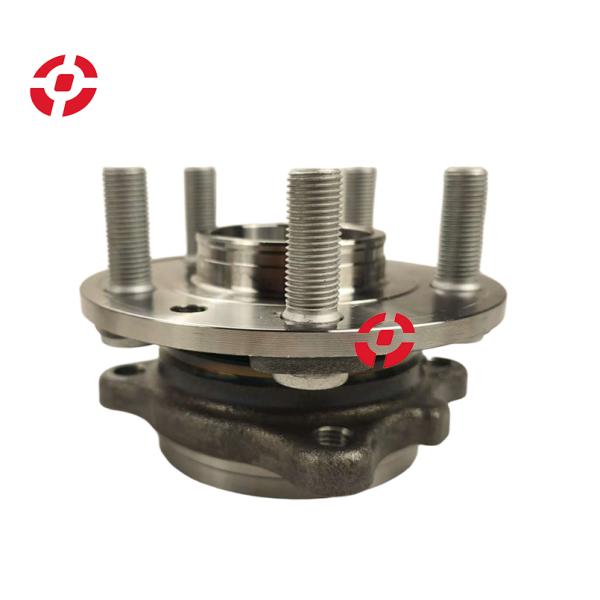

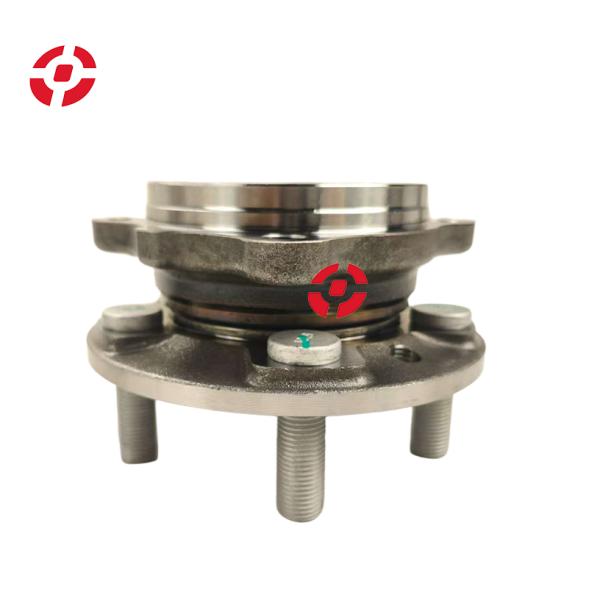

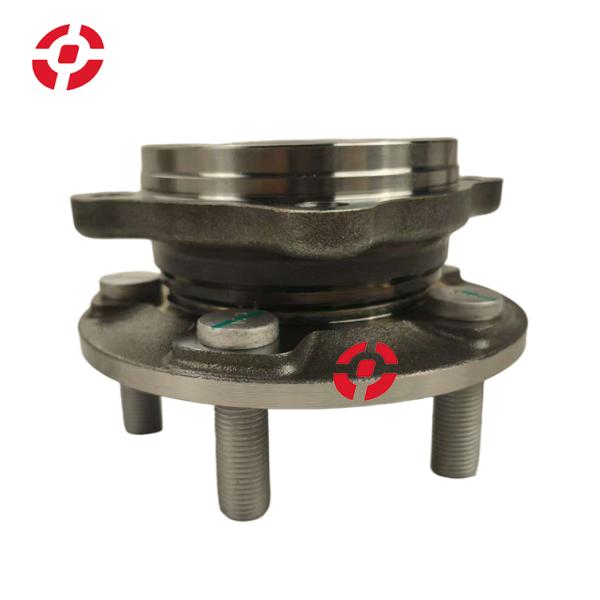

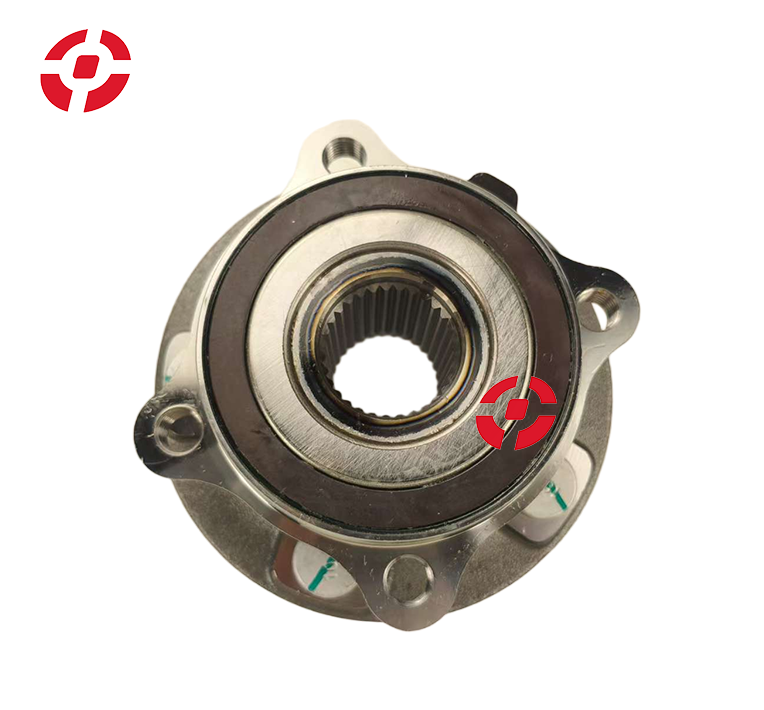

Auto front Wheel bearing Hub-unit bearing LR090515 Hub bearing assembly for Land Rover

Product Description:

Auto wheel hub bearing assembly

OE numbers: LR090515 T4A16694 T4A38492

Applicable vehicle type: For Land Rover

The Wheel Hub Bearing (HBU) is an integrated "rotation-load bearing" unit installed inside the wheel hub. It connects the wheel to the suspension steering knuckle/axle, bearing the entire weight of the vehicle while ensuring the wheel rotates smoothly at high speeds. It is a key joint at the end of the suspension system.

Common fault symptoms :

1.Buzzing noise

The sound increases with speed and varies with steering input—typical of bearing raceway fatigue.

2.Steering wheel vibration

Prominent between 80–120 km/h, prioritize checking hub bearings if dynamic balance is ineffective.

3.Hub overheating

Touch the hub housing; if the temperature on one side exceeds 80 ℃ and the difference between sides is more than 20 ℃—lubrication failure.

4.ABS false alarm

Cracked magnetic ring in third-generation bearings leads to loss of wheel speed signal, causing ESP light to illuminate.

5.Tire sawtooth wear

Bearing clearance greater than 0.15 mm causes dynamic camber changes in the wheel, leading to uneven tire wear on the inner or outer side.

Repair:

1. Inspection on vehicle

• Lift the vehicle and manually shake the tires while they are unloaded. If the axial clearance is greater than 0.15 mm, the parts should be scrapped.
• Place the electronic stethoscope on the wheel hub shell. If the decibel value exceeds 55 dB and increases linearly with vehicle speed, replace the components.

2. Replacement principles

• Replace in pairs: ensure both left and right components have the same lifespan to avoid uneven damping that could cause deviation.
• New bolts must be used, and pre-tightening should be done using torque plus angle method (commonly 280 N·m + 90°).

3. Press fitting points

• The hydraulic press should only apply pressure to the outer ring of the bearing to prevent damage to the raceway.
• Maintain a 0.05 mm gap between the third-generation flange surface and the steering knuckle locating pin to ensure the end face is flush.

4. ABS calibration

• After replacement, drive at speeds above 20 km/h to trigger one ABS self-check; if the fault light remains on, use a diagnostic tool to clear the code.

• 20 years of specialized auto parts industry experience
• Expert technical team for comprehensive support
• Direct partnerships with repair shops for real-world feedback
• Premium quality parts ensuring reliability and durability
• Extensive inventory with over 500,000+ items ready to ship
• Responsive customer service with quick turnaround
• Customized solutions for specific vehicle requirements
• Professional technical guidance and installation support
• Comprehensive 12-month warranty coverage
• Competitive pricing through optimized supply chains
• Rigorous quality control meeting industry standards
• Efficient global shipping via multiple carriers

Beijing Huarui Jietong Trading Co., Ltd. has been engaged in the automotive aftermarket for 20 years and is a professional supplier of auto parts. Located in the capital of China, Beijing, we have factories in Beijing, Guangzhou, and Jiangsu, which enable us to meet our customers' demands for quality and quantity in a timely and efficient manner.

The company primarily focuses on accessories for Land Rover, Jaguar, and Volvo product series, including Air Conditioning Systems, Braking Systems, Driving Systems, Engine Systems, Cooling Systems, Auto Body Systems, Steering Systems, Suspension Systems, Transmission Systems, and other related parts. Facing the trend of economic globalization, our company is committed to bringing better products and services to the world, providing high-quality products and services for domestic and foreign enterprises and customers.

We welcome any inquiries and look forward to your contact.
