QSFP+ 40GE iLR4 2 km Fiber Optic Transceivers used for Data Center Interconnect

QSFP+ 40GE iLR4 2 km Fiber Optic Transceivers used for Data Center Interconnect

1. Description

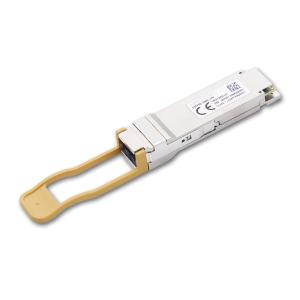

CY COM's OM3358FX100 is a QSFP+ transceiver module designed for 2 km optical communication
applications with single mode fiber. It is compliant with IEEE 802.3-2018 40GBASE-LR4 (partly compliant),
IEEE 802.3-2018 Annex 86A, QSFP+ MSA standards. Digital diagnostic management interface (DDMI)
is realized by I2C interface in compliance with SFF-8636. The module is RoHS 2 compliant.
This module can convert 4-channel 10 Gbps electrical data to 4-channel optical signals, and mul-tiplex
them into a single channel for 40 Gbps optical transmission. Similarly, it optically de-multiplexes a 40
Gbps input into 4-channel signals, and converts them to 4-channel output electrical data on the receiver
side. It has been designed to meet the harshest external operating conditions including temperature,
humidity and EMI interference.
Figure 1-1 Transceiver block diagram

Product Features

● QSFP+ MSA compliant

● IEEE 802.3-2018 compliant

● 4 CWDM lanes MUX/DEMUX design

● 4 x 10G electrical interface (XLPPI)

● Maximum power consumption 3.5 W

● LC duplex connector

● 41.25 Gbps aggregate bit rate

● Up to 2 km transmission on single mode fiber without FEC

● Operating case temperature: 0 to 70°C

● Single 3.3 V power supply

● I2C digital management interface

● RoHS 2 compliant

Applications
● 40GE Ethernet
● Data Center Interconnect
● Enterprise networking
