| Categories | Ultra Low Frequency Antenna |
|---|---|
| Brand Name: | Chaowei |
| Model Number: | CW-F011 |
| Certification: | CE/ROHS/FCC/UKCA/PSE |
| Place of Origin: | China |
| MOQ: | 10-100 pcs |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000 PCS /Month |
| Delivery Time: | 1-7 working days |
| Packaging Details: | PE bag& Carton |
| Frequency: | 433MHz |
| Gain: | 0dBi |
| Connector: | N Male customized |
| VSWR: | ≤2.0 |
| Polarization: | Liner |

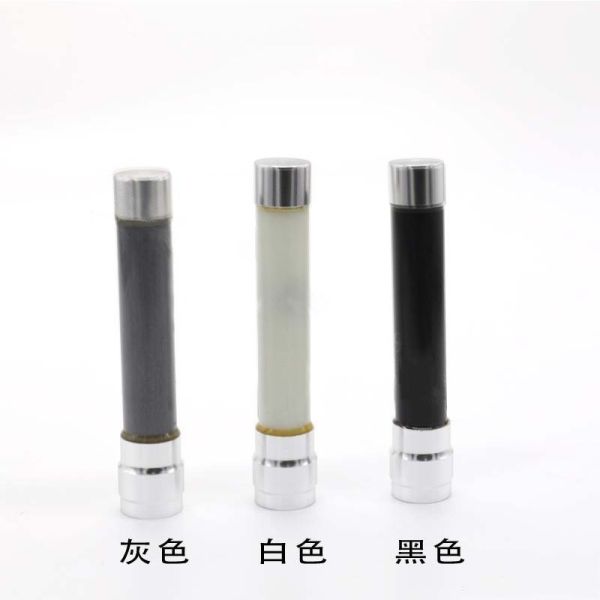

| Color: | White,black or customized |
| Impedance: | 50 Ohm |

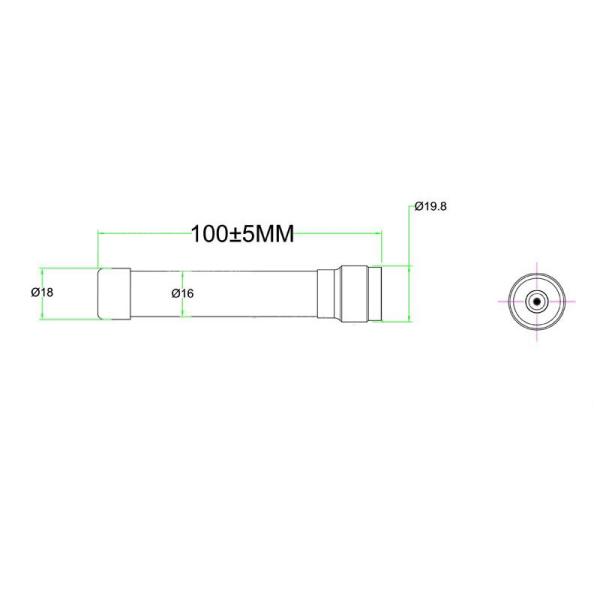

| Dimension: | 100*16 |
| Operationg temperature: | - 45 ˚C ~ + 85 ˚C |
| Storage Temperature: | - 45 ˚C ~ + 85 ˚C |
High Gain 433MHz Outdoor Omnidirectional Tv Antenna Waterproof 2dBi
Factory direct supply high gain 433MHz outdoor omnidirectional FRP antenna N-head waterproof LoRa antenna

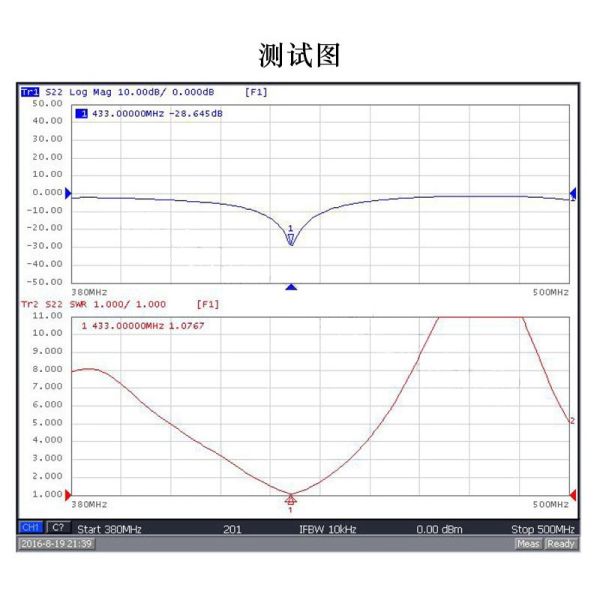

Outdoor Omnidirectional Tv Antenna Specifications
| A.Electrical Characteristics | |
| Working Frequency | 433MHz |
| S.W.R | <2.0 |
| Typical Antenna Gain | 2dBi |
| Polarization | Vertical |
| Impedence | 50 Ohm |
| B.Material | |
| Marerial of Plastic | RPMP |
| Connector Type | N male |
| C.Environmental | |
| Operation Temperature | -45℃~+85℃ |
| Storage Temperture | -45℃~+85℃ |




Points For Attention
Q&A
1) Q: Can you send a sample for us?
A: Yes, The samples are free, but the express fee should be paid.
2) Q: Can your company accept customize?
A: Welcome OEM & ODM. As you know, many antennas are customized
based on project and application, and we have R&D capability to
meet customization requirements.
3) Q: What's your delivery time?
A: Fast delivery and first-class service, products can be send out
once receive your payment. Usually, 7-14 days for mass production.
4) Q: What’s your payment term?
A: We usually accept T/T,PAYPAL and Western Union as the main payment term, and other payments can also be negotiated.
5) Q: What is the ways of logistics
A: Support multiple logistics modes,such as DHL/FEDEX/BY AIR/BY SEA .....
|
