| Categories | Stainless Steel Butt Welded Pipe Fittings |
|---|---|
| Brand Name: | YUHAO |
| Model Number: | Butt Weld Pipe Fittings |
| Certification: | ASTM, AISI, GB, DIN, JIS, EN |
| Place of Origin: | China |
| MOQ: | 100kgs |
| Price: | Negotiation |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 2000tons/per month |
| Delivery Time: | 15days |
| Packaging Details: | Standard sea worth bundles,Standard Plywood cases |
| Wall Thickness: | SCH10-SCH180 |
| Customized Support: | OEM, ODM, OBM |
| Product Name: | Tee |
| Surface Treatment: | Mirror, Polishing, Sandblasting, Sand Rolled |
| Connection Type: | Butt Welded |
| Packing: | PLY-wooden case or pallet or as for clients' requirements. |
| Standard: | EN, ASTM, AISI, DIN, JIS |
| Grade: | 304, 304L, 316, 316L, 321 |
| Diameter Range: | DN5-DN1200 |
| Shape: | Round, Square, Rectangle, Slot, Round Section |
| Technique: | Cold Rolled, Hot Rolled, Cold drawn, Seamless/Welded |
| Price Term: | CIF, FOB, EX-WORK |
SCH10-SCH180 SS Welded Tube Stainless Steel Equal Tee Butt Welded Pipe Fittings
►Products description
Stainless steel butt-welded equal tees are precision-engineered pipe fittings designed to create 90° branch connections in high-performance piping systems. Manufactured from premium-grade stainless steel (304, 304L, 316, 316L), these fittings deliver exceptional corrosion resistance, mechanical strength, and durability for critical applications in chemical processing, oil & gas, and sanitary industries.
The butt-weld design ensures a permanent, leak-proof connection with smooth internal surfaces to maintain optimal flow efficiency. Compliant with ASME B16.9 and ASTM A403 standards, these equal tees withstand high pressures and temperatures while maintaining structural integrity. Available in various sizes and schedules, they provide reliable solutions for industrial and hygienic piping networks requiring long-term performance.
►Industry-specific attributes
| Technic | Casting |
| Shape | Equal |
| Place of Origin | Zhejiang, China |
| Surface Treatment | Sandrolling, Sandblasting |
| Mounting Hole Diameter | Customizable |
| customized Support | OEM, ODM |
| Brand Name | Yuhao |
| Connectivity | Welding |
| Pressure | High Pressure |
| Packing | Cartons, Pallet, Cases |
►Product Size
| DN | NPS | OD | Nominal Wall Thickness | ||||||||||
| Schss | Sch10S | Sch405 | Sch8os | Sch10 | Sch20 | Sch30 | STD | Sch40 | Sch60 | XS | |||
| 6 | 1/8 | 10.3 | - | 1.24 | 1.73 | 2.41 | - | - | - | 1.73 | 1.73 | - | 2.41 |
| 8 | 1/4 | 13.7 | 1.65 | 2.24 | 3.02 | - | - | - | 2.24 | 2.24 | - | 3.02 | |
| 10 | 3/8 | 17.1 | - | 1.65 | 2.31 | 3.2 | - | - | - | 2.31 | 2.31 | - | 3.2 |
| 15 | 1/2 | 21.3 | 1.65 | 2.11 | 2.77 | 3.73 | - | - | - | 2.77 | 2.77 | - | 3.73 |
| 20 | 3/4 | 26.7 | 1.65 | 2.11 | 2.87 | 3.91 | - | - | - | 2.87 | 2.87 | - | 3.91 |
| 25 | 1 | 33.4 | 1.65 | 2.77 | 3.38 | 4.55 | - | - | - | 3.38 | 3.38 | - | 4.55 |
| 32 | 1 1/4 | 42.2 | 1.65 | 2.77 | 3.56 | 4.85 | - | - | - | 3.56 | 3.56 | - | 4.85 |
| 40 | 1 1/2 | 48.3 | 1.65 | 2.77 | 3.68 | 5.08 | - | - | - | 3.68 | 3.68 | - | 5.08 |
| 50 | 2 | 60.3 | 1.65 | 2.77 | 3.91 | 5.54 | - | - | - | 3.91 | 3.91 | - | 5.54 |
| 65 | 2 1/2 | 73 | 2.11 | 3.05 | 5.16 | 7.01 | - | - | - | 5.16 | 5.16 | - | 7.01 |
| 80 | 3 | 88.9 | 2.11 | 3.05 | 5.49 | 7.62 | - | - | - | 5.49 | 5.49 | - | 7.62 |
| 90 | 3 1/2 | 101.6 | 2.11 | 3.05 | 5.74 | 8.08 | - | - | - | 5.74 | 5.74 | - | 8.08 |
| 100 | 4 | 114.3 | 2.11 | 3.05 | 6.02 | 8.56 | - | - | - | 6.02 | 6.02 | - | 8.56 |
| 125 | 5 | 141.3 | 2.77 | 3.4 | 6.55 | 9.53 | - | - | - | 6.55 | 6.55 | - | 9.53 |
| 150 | 6 | 168.3 | 2.77 | 3.4 | 7.11 | 10.97 | - | - | - | 7.11 | 7.11 | - | 10.97 |
| 200 | 8 | 219.1 | 2.77 | 3.76 | 8.18 | 12.7 | - | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.7 |
| 250 | 10 | 273 | 3.4 | 4.19 | 9.27 | 12.7 | - | 6.35 | 7.8 | 9.27 | 9.27 | 12.7 | 12.7 |
| 300 | 12 | 323.8 | 3.96 | 4.57 | 9.53 | 12.7 | - | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.7 |
| 350 | 14 | 355.6 | 3.96 | 4.78 | - | - | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.7 |
| 400 | 16 | 406.4 | 4.19 | 4.78 | - | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 16.66 | 12.7 | |
| 450 | 18 | 457 | 4.19 | 4.78 | - | - | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.7 |
| 500 | 20 | 508 | 4.78 | 5.54 | - | - | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 20.62 | 12.7 |

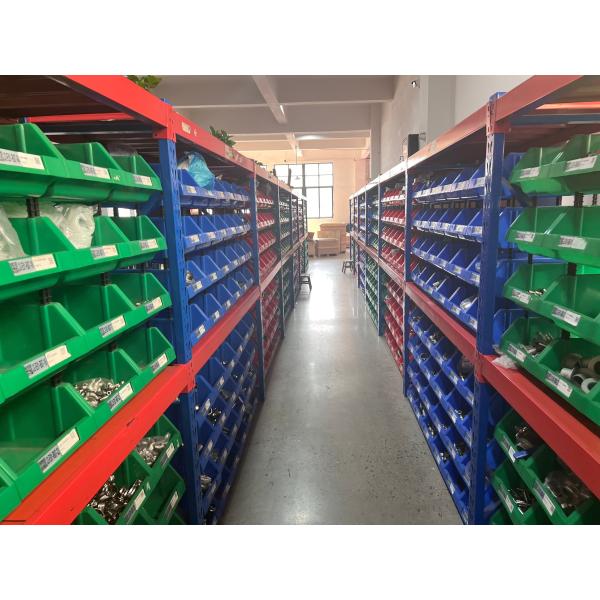

►Factroy Shoot
►FAQ
Q1: What is your minimum order quantity?
A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.
Q2: Delivery time?
A: 1- 7 days for small order.10- 20 days for big order.
Q3: Are you manufacturer or trading company?
A: We are not only manufacturer but also a trading company,we have more than 12years export experience.
Q4: Can you supply what's the service?
A: We can supply the kinds of matel raw materies and products,such as pipes,pipe fittings,flanges,coil,sheet,round bar and so on...
Q5: Can you provide the free samples?
A: We can supply the free samples but the sample express freight need paid by yourside.
|
